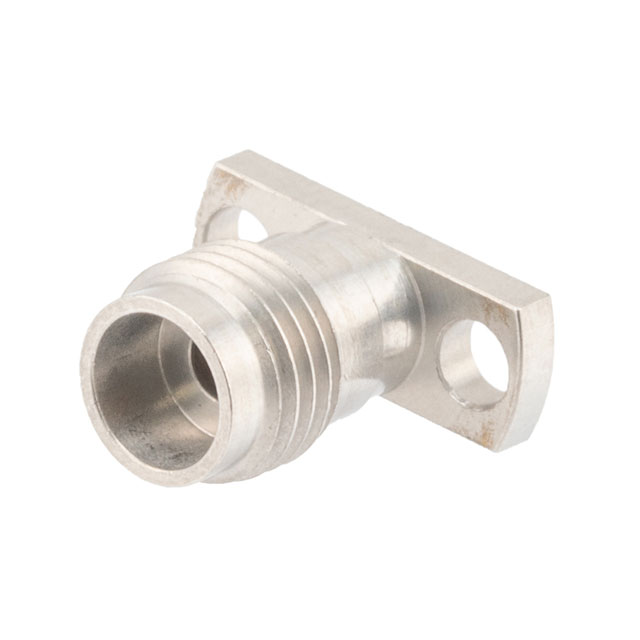

PE45623

Active

Pasternack

2.4(F) FLD RPL 2HOLE 0.012" PIN

Search across all available documentation for this part.

Active

Pasternack

2.4(F) FLD RPL 2HOLE 0.012" PIN

Technical Specifications

Parameters and characteristics for this part

Specification	PE45623

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Screw

Part	Impedance	Number of Ports	Frequency - Max [Max]	Center Contact Plating	Mounting Feature	Connector Type	Body Material	Housing Color	Center Contact Material	Features	Connector Style	Connector Style	Connector Style	Shield Termination	Contact Termination	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material
Pasternack PE45625	50 Ohms	1	50 GHz	Gold	Flange	Female Socket Receptacle	Stainless Steel	Silver	Beryllium Copper	Field Replaceable For Hermetically Sealed Pin	OS-50	2.4 mm	APC-2.4	Screw	Compression	500	165 °C	-40 °C	Polyetherimide (PEI)
Pasternack PE45623	50 Ohms	1	50 GHz	Gold	Flange	Female Socket Receptacle	Stainless Steel	Silver	Beryllium Copper	Field Replaceable For Hermetically Sealed Pin	OS-50	2.4 mm	APC-2.4	Screw	Compression	500	165 °C	-40 °C	Polyetherimide (PEI)
Pasternack PE45626	50 Ohms	1	50 GHz	Gold	Flange	Female Socket Receptacle	Stainless Steel	Silver	Beryllium Copper	Field Replaceable For Hermetically Sealed Pin	OS-50	2.4 mm	APC-2.4	Screw	Compression	500	165 °C	-40 °C	Polyetherimide (PEI)
Pasternack PE45624	50 Ohms	1	50 GHz	Gold	Flange	Female Socket Receptacle	Stainless Steel	Silver	Beryllium Copper	Field Replaceable For Hermetically Sealed Pin	OS-50	2.4 mm	APC-2.4	Screw	Compression	500	165 °C	-40 °C	Polyetherimide (PEI)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
