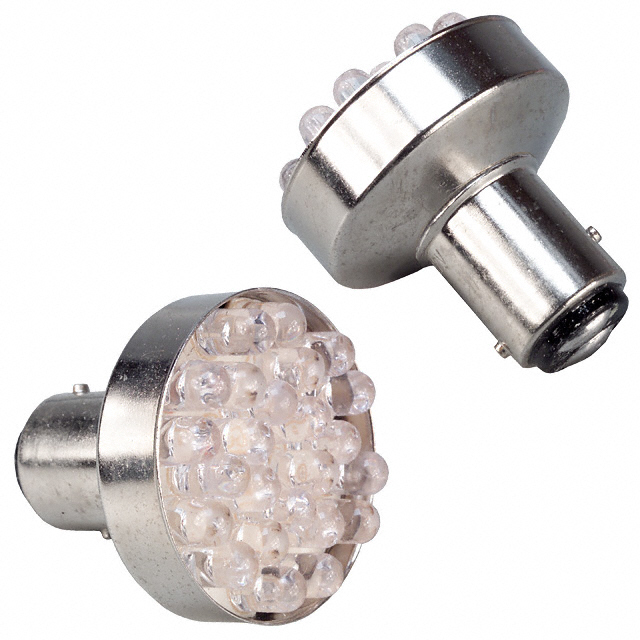

SSP-24MDB156U12G

Active

Lumex Opto/Components Inc.

LED 1.28" 24L BA15 DBL 626NM RED

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 1.28" 24L BA15 DBL 626NM RED

Technical Specifications

Parameters and characteristics for this part

Specification	SSP-24MDB156U12G

Applications	Indicator Lights, Incandescent Replacements
Base Type	Bayonet (BA15D)
Can Replace Lamps	1157
Color	Red (x 24)
Configuration	24 Round
Millicandela Rating	102400 mcd
Size / Dimension [diameter]	33.85 mm
Size / Dimension [diameter]	1.333 in
Size / Dimension [z]	1.496 in
Size / Dimension [z]	38 mm
Voltage - Forward (Vf) (Typ)	12 V
Wavelength	626 nm

Part	Base Type	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength	Can Replace Lamps	Applications	Configuration	Color	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]
Lumex Opto/Components Inc. SSP-24MDB156U12G	Bayonet (BA15D)	102400 mcd	12 V	626 nm	1157	Incandescent Replacements Indicator Lights	24 Round	Red (x 24)	33.85 mm	1.333 in	1.496 in	38 mm
Lumex Opto/Components Inc. SSP-24MDB153S12G	Bayonet (BA15D)	106200 mcd	12 V	590 nm	1157	Incandescent Replacements Indicator Lights	24 Round	Yellow (x 24)	33.85 mm	1.333 in	1.496 in	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lamp Replacement Red (x 24) Bayonet (BA15D) 12V 1.333" Dia x 1.496" H (33.85mm x 38.00mm)

Technical documentation and resources

No documents available
