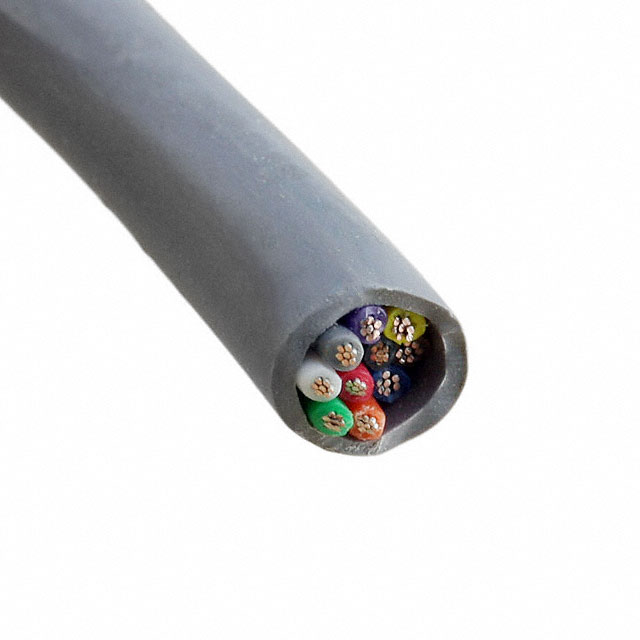

1180L SL002

Active

ALPHA WIRE

CABLE 10COND 22AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 22AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1180L SL002

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Voltage	Cable Type	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Length	Length
ALPHA WIRE 1180L SL002	Slate	7	30 AWG	Low Smoke Zero Halogen (LSZH)	10	500 '	152.4 m	6.6 mm	0.26 in	Communication Control	300 V	Multi-Conductor	Copper Tinned	0.025 in	0.635 mm	22 AWG
ALPHA WIRE 1180L SL001	Slate	7	30 AWG	Low Smoke Zero Halogen (LSZH)	10			6.6 mm	0.26 in	Communication Control	300 V	Multi-Conductor	Copper Tinned	0.025 in	0.635 mm	22 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.37

General part information

10 Conductor Multi-Conductor Cable Slate 22 AWG 500.0' (152.4m)
