BAS40SW_R1_00001

Active

Panjit International Inc.

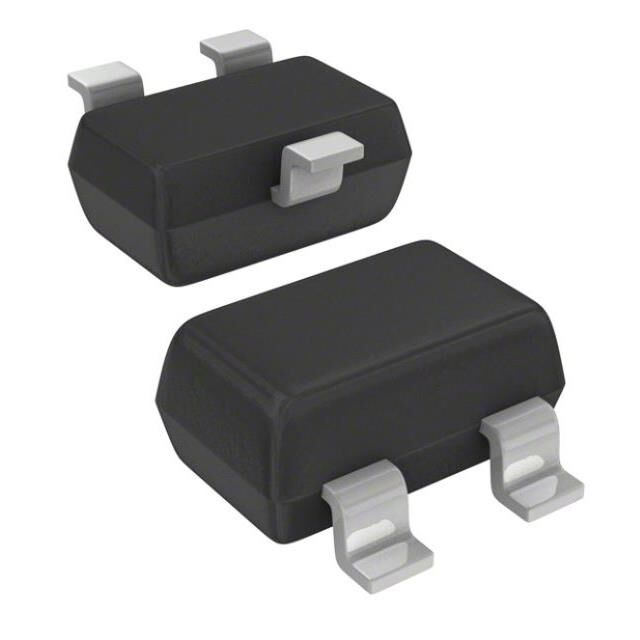

DIODE SMALL SIGNAL SCHOTTKY 0.2A 3-PIN SOT-323 T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BAS40SW_R1_00001

Active

Panjit International Inc.

DIODE SMALL SIGNAL SCHOTTKY 0.2A 3-PIN SOT-323 T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BAS40SW_R1_00001

Current - Average Rectified (Io) (per Diode)	200 mA
Current - Reverse Leakage @ Vr	1 µA
Diode Configuration	1 Pair Series Connection
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SC-70, SOT-323
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	1 V

BAS40 Series

Part	Package / Case	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Speed	Speed	Mounting Type	Current - Average Rectified (Io)	Capacitance @ Vr, F	Supplier Device Package	Qualification	Diode Configuration	Grade	Current - Average Rectified (Io) (per Diode)	Reverse Recovery Time (trr)	Operating Temperature - Junction
Panjit International Inc. BAS40WS_R1_00001	SC-90 SOD-323F	10 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount	200 mA	5 pF	SOD-323
Panjit International Inc. BAS40A-AU_R1_000A1	SC-59 SOT-23-3 TO-236-3	1 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount			SOT-23	AEC-Q101	1 Pair Common Anode	Automotive	200 mA
Panjit International Inc. BAS40WS-AU_R1_000A1	SC-90 SOD-323F	1 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount	200 mA	5 pF	SOD-323	AEC-Q101		Automotive
Panjit International Inc. BAS40SDW_R1_00001	6-TSSOP SC-88 SOT-363	1 µA	40 V	1 V	125 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount			SOT-363		2 Pair Series Connection		200 mA	5 ns
Panjit International Inc. BAS40TS_R1_00001	SC-79 SOD-523	1 µA	40 V	1 V			Schottky	Any Speed	200 mA	Surface Mount	200 mA	5 pF	SOD-523						125 °C
Panjit International Inc. BAS40C-AU_R1_000A1	SC-59 SOT-23-3 TO-236-3	1 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount			SOT-23	AEC-Q101	1 Pair Common Cathode	Automotive	200 mA
Panjit International Inc. BAS40SW_R1_00001	SC-70 SOT-323	1 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount			SOT-323		1 Pair Series Connection		200 mA
Panjit International Inc. BAS40CW_R1_00001	SC-70 SOT-323	1 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount			SOT-323		1 Pair Common Cathode		200 mA
Panjit International Inc. BAS40SW-AU_R1_000A1	SC-70 SOT-323	1 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount			SOT-323	AEC-Q101	1 Pair Series Connection	Automotive	200 mA
Panjit International Inc. BAS40W_R1_00001	SC-70 SOT-323	1 µA	40 V	1 V	150 °C	-55 °C	Schottky	Any Speed	200 mA	Surface Mount	200 mA	5 pF	SOT-323
