NDM2Z-50HT-DEMO-D

Obsolete

CUI Inc.

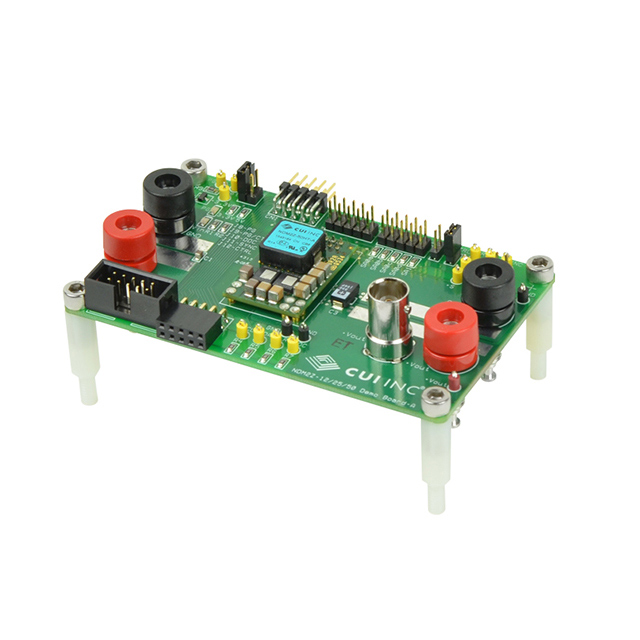

NOVUM NDM2Z-50HT BRD W/ DONGLE

Search across all available documentation for this part.

Obsolete

CUI Inc.

NOVUM NDM2Z-50HT BRD W/ DONGLE

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Utilized IC / Part	Outputs and Type	Outputs and Type	Power - Output	Current - Output	Frequency - Switching	Regulator Topology	Board Type	Main Purpose	Voltage - Output	Type	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Features	Mounting Type	Number of Outputs	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
CUI Inc. NDM2Z-50HT-DEMO-D	Board(s)	NDM2Z-50	Non-Isolated	1	165 W	50 A	320 kHz	Buck	Fully Populated	DC/DC Step Down	1.2 V
CUI Inc. NDM2Z-50V-A-001												Non-Isolated PoL Module Digital	ITE (Commercial)	14 V	4.5 V	20-SIP Module	Digital	Through Hole	1	0.6 V	3.3 V	94.6 %	18.1 mm	0.3 "	7.6 mm	34 mm	0.71 in	1.34 in	50 A	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NDM2Z-50 Novum® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
