USB4125-GF-A-0190
ActiveGCT

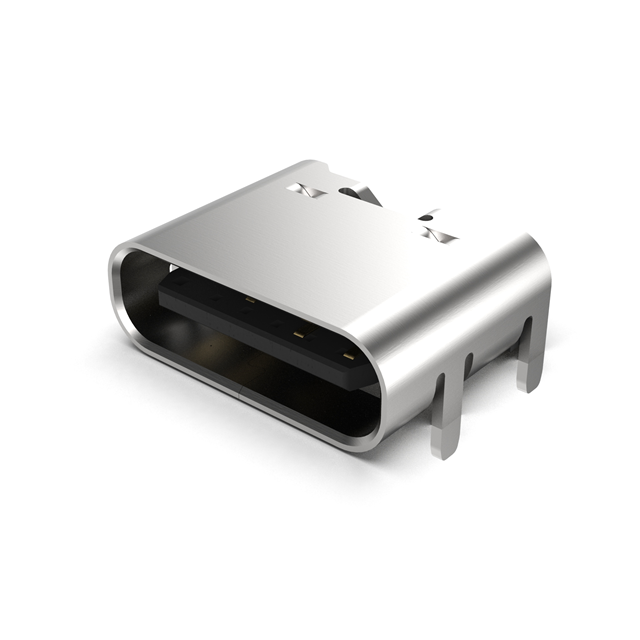

CONN RCPT TYPE C 6P SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
USB4125-GF-A-0190
ActiveGCT
CONN RCPT TYPE C 6P SMD RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB4125-GF-A-0190 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 3 A |
| Features | No Data, Solder Retention Tab, Power Only |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 6, 18 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.67 | ||
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.42 | |||
| Tape & Reel (TR) | 1000 | $ 0.35 | ||
| 2000 | $ 0.34 | |||
| 3000 | $ 0.32 | |||
| 5000 | $ 0.30 | |||
| 10000 | $ 0.28 | |||
| 25000 | $ 0.27 | |||
Description
General part information
USB4125 Series
USB-C (USB TYPE-C) Receptacle Connector 24 (6+18 Dummy) Position Surface Mount, Right Angle; Through Hole
