2010,IR

Active

Serpac

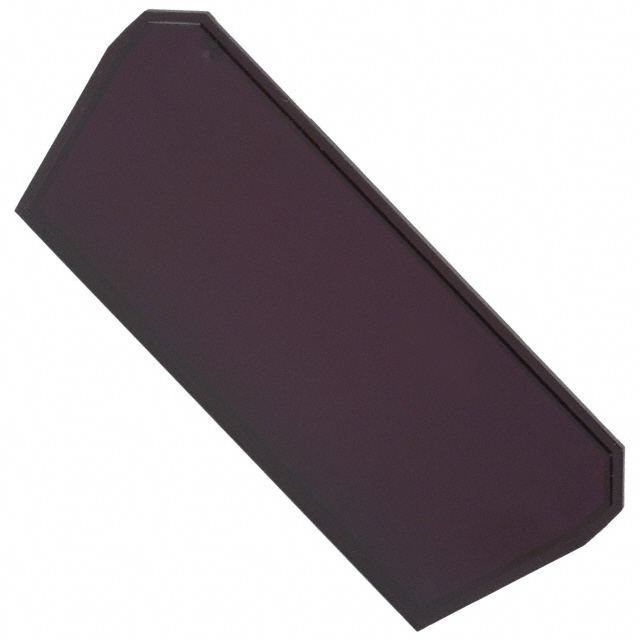

BOX END PANEL INFRA-RED A27 SERI

Search across all available documentation for this part.

Active

Serpac

BOX END PANEL INFRA-RED A27 SERI

Technical Specifications

Parameters and characteristics for this part

Specification	2010,IR

For Use With/Related Products	A27 Series
Material	Plastic, Polycarbonate
Size / Dimension [x]	3.144 in
Size / Dimension [x]	79.86 mm
Size / Dimension [y]	1.3 in
Size / Dimension [y]	33.02 mm
Size / Dimension [z]	0.1 "
Size / Dimension [z]	2.54 mm
Type	Panel, End

Part	Material	For Use With/Related Products	Type	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features
Serpac 2010,BK	Plastic ABS	A27 Series	Panel End	Black	0.1 "	3.144 in	1.3 in	2.54 mm	33.02 mm	79.86 mm
Serpac 2010,IR	Plastic Polycarbonate	A27 Series	Panel End		0.1 "	3.144 in	1.3 in	2.54 mm	33.02 mm	79.86 mm
Serpac 2010DB25	Plastic ABS	A27 Series	Panel End	Black	0.1 "	3.144 in	1.3 in	2.54 mm	33.02 mm	79.86 mm	DB25 Cutout
Serpac 2010,CL	Plastic Polycarbonate	A27 Series	Panel End	Clear	0.1 "	3.144 in	1.3 in	2.54 mm	33.02 mm	79.86 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plastic, Polycarbonate Panel, End 3.144" L x 1.300" W x 0.100" H (79.86mm x 33.02mm x 2.54mm) Infra-Red

Technical documentation and resources

No documents available
