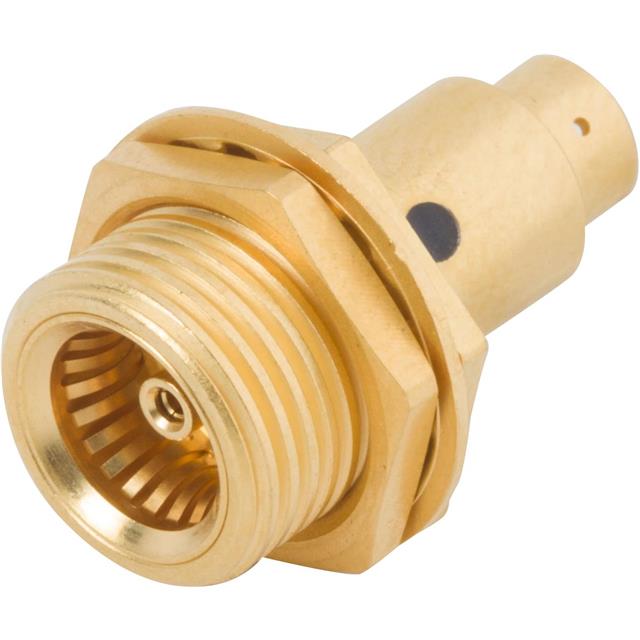

1733-6008

Active

Amphenol SV Microwave

CONN BMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN BMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1733-6008

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	5000
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Solder

Part	Shield Termination	Mounting Feature	Connector Type	Number of Ports	Includes	Cable Group	Cable Group	Frequency - Max [Max]	Mating Cycles	Dielectric Material	Connector Style	Center Contact Material	Housing Color	Impedance	Body Material	Contact Termination	Body Finish	Center Contact Plating	Fastening Type
Amphenol SV Microwave 1733-6008	Solder	Bulkhead - Front Side Nut	Female Socket Jack	1	1 Connector 1 Lockwasher 1 Nut	0.085 in	RG-405	22 GHz	5000	Polytetrafluoroethylene (PTFE)	BMA	Beryllium Copper	Gold	50 Ohms	Stainless Steel	Solder	Gold	Gold	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 107.03

General part information

BMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
