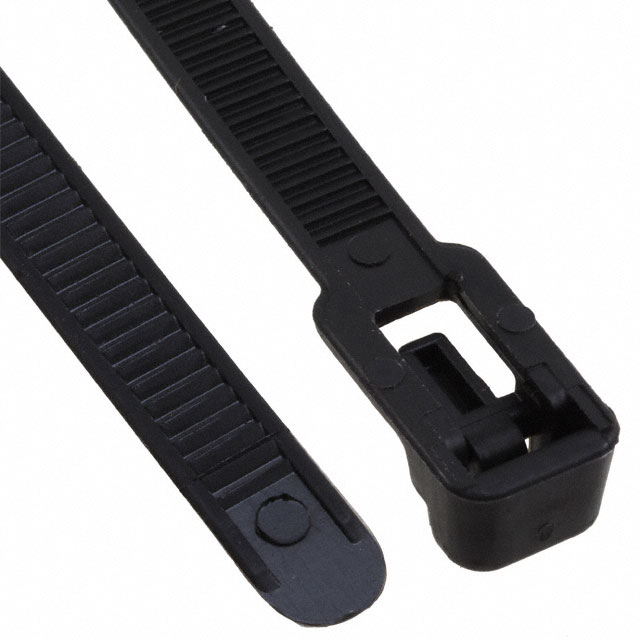

REL50L0C2
ObsoleteHELLERMANNTYTON
CBL TIE RELEASABL BLK 50LB 9.84"
Deep-Dive with AI
Search across all available documentation for this part.
REL50L0C2
ObsoleteHELLERMANNTYTON
CBL TIE RELEASABL BLK 50LB 9.84"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | REL50L0C2 |
|---|---|
| Bundle Diameter [diameter] | 2.76 in |
| Bundle Diameter [diameter] | 70 mm |
| Color | Black |
| Length - Actual | 250 mm |
| Length - Actual | 0.82 ft |
| Length - Actual | 9.84 in |
| Length - Approximate | 9.75 " |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 22.68 kg |
| Tensile Strength | 50 lbs |
| Width [x] | 7.4 mm |
| Width [x] | 0.291 in |
| Wire/Cable Tie Type | Standard, Releasable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
REL50L Series
Standard, Releasable Black 2.76" (70.00mm) 0.291" (7.40mm) 50 lbs (22.68 kg)
