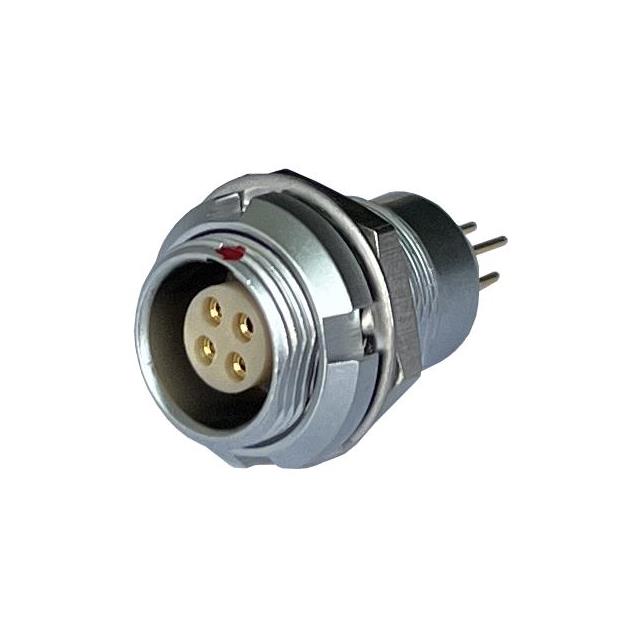

MMI-M0RSG04P

Active

Adam Tech

CONN RCPT FMALE 4POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-M0RSG04P

Active

Adam Tech

CONN RCPT FMALE 4POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-M0RSG04P

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Unshielded
Termination	Solder
Voltage Rating	200 V

MMI-M0RSG Series

Part	Shielding	Orientation	Termination	Insert Material	Ingress Protection	Shell Material	Primary Material	Number of Positions	Mounting Feature	Color	Mounting Type	Shell Finish	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Fastening Type	Current Rating (Amps)	Contact Material
Adam Tech MMI-M0RSG06P	Unshielded	G	Solder	Polyphenylene Sulfide (PPS)	IP50	Brass	Metal	6	Bulkhead - Rear Side Nut	Silver	Panel Mount Through Hole	Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	2.5 A	Brass
Adam Tech MMI-M0RSG04S	Unshielded	G		Polyphenylene Sulfide (PPS)	IP50	Brass	Metal	4	Bulkhead - Rear Side Nut	Silver		Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	5 A	Brass
Adam Tech MMI-M0RSG02S	Unshielded	G		Polyphenylene Sulfide (PPS)	IP50	Brass	Metal	2	Bulkhead - Rear Side Nut	Silver		Chrome	Gold	-55 °C	150 °C	250 VDC	Receptacle Female Sockets	Push-Pull	8 A	Brass
Adam Tech MMI-M0RSG05PR	Unshielded	G	Solder	Polyphenylene Sulfide (PPS)	IP50	Brass	Metal		Bulkhead - Rear Side Nut	Silver	Panel Mount Right Angle Through Hole	Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	5 A	Brass
Adam Tech MMI-M0RSG06S	Unshielded	G		Polyphenylene Sulfide (PPS)	IP50	Brass	Metal	6	Bulkhead - Rear Side Nut	Silver		Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	2.5 A	Brass
Adam Tech MMI-M0RSG05S-IP67	Unshielded	G		Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Brass	Metal		Bulkhead - Rear Side Nut	Silver		Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	5 A	Brass
Adam Tech MMI-M0RSG05P	Unshielded	G	Solder	Polyphenylene Sulfide (PPS)	IP50	Brass	Metal		Bulkhead - Rear Side Nut	Silver	Panel Mount Through Hole	Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	5 A	Brass
Adam Tech MMI-M0RSG04P	Unshielded	G	Solder	Polyphenylene Sulfide (PPS)	IP50	Brass	Metal	4	Bulkhead - Rear Side Nut	Silver	Panel Mount Through Hole	Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	5 A	Brass
Adam Tech MMI-M0RSG07S-IP67	Unshielded	G		Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	Brass	Metal	7	Bulkhead - Rear Side Nut	Silver		Chrome	Gold	-55 °C	150 °C	200 V	Receptacle Female Sockets	Push-Pull	2 A	Brass
Adam Tech MMI-M0RSG03S	Unshielded	G		Polyphenylene Sulfide (PPS)	IP50	Brass	Metal		Bulkhead - Rear Side Nut	Silver		Chrome	Gold	-55 °C	150 °C	250 VDC	Receptacle Female Sockets	Push-Pull	7 A	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.13
		20	$ 10.09
		40	$ 9.75

Description

General part information

MMI-M0RSG Series

4 Position Circular Connector Receptacle, Female Sockets Solder
