5502208F
ActiveDIALIGHT

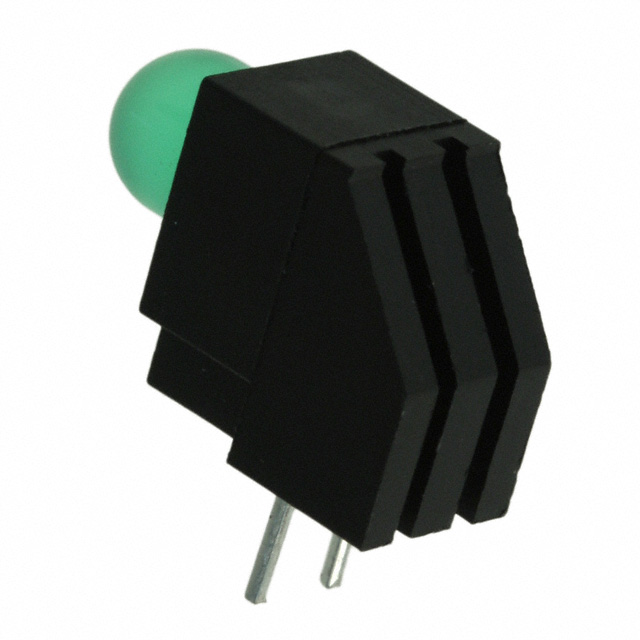

LED CBI 5MM GRN DIFF RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5502208F
ActiveDIALIGHT
LED CBI 5MM GRN DIFF RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5502208F |
|---|---|
| Color | Green |
| Configuration | Single |
| Current | 25 mA |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 65 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 563 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.45 | |
| 10 | $ 0.91 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
| 2000 | $ 0.47 | |||
| 5000 | $ 0.44 | |||
| 10000 | $ 0.42 | |||
Description
General part information
5502208 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused 2.1V 25mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
