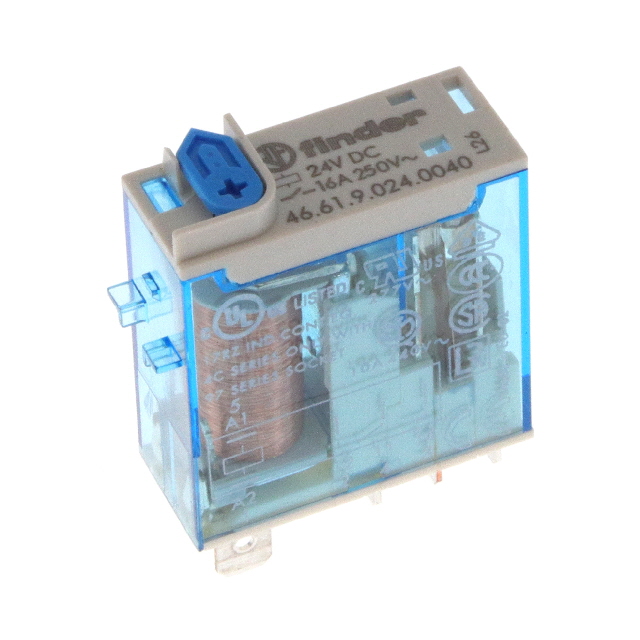

46.61.9.024.0040

Active

Finder Relays, Inc.

RELAY GEN PURPOSE SPDT 16A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

46.61.9.024.0040

Active

Finder Relays, Inc.

RELAY GEN PURPOSE SPDT 16A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	46.61.9.024.0040

Approval Agency	cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC
Coil Current	20 mA
Coil Resistance	1.2 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Load - Max Switching	7040 VA
Mounting Type	Socketable
Must Operate Voltage	17.5 VDC
Must Release Voltage	4.8 VDC
Operate Time	15 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Switching Voltage	440 VAC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

46.61.9 Series

Part	Must Release Voltage	Release Time	Contact Material	Switching Voltage	Coil Type	Approval Agency	Operate Time	Must Operate Voltage	Contact Rating (Current)	Coil Current	Coil Resistance	Termination Style	Mounting Type	Contact Form	Load - Max Switching	Relay Type	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Features
Finder Relays, Inc. 46.61.9.048.0040	9.6 VDC	5 ms	Silver Nickel (AgNi)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	35 VDC	16 A	10 mA	4.8 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	48 VDC	-40 °C	70 °C
Finder Relays, Inc. 46.61.9.125.0040	25 VDC	5 ms	Silver Nickel (AgNi)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	91.2 VDC	16 A		32 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	125 VDC	-40 °C	70 °C
Finder Relays, Inc. 46.61.9.024.0074	2.4 VDC	5 ms	Silver Nickel (AgNi)		Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	17.5 VDC	16 A	20 mA	1.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	6400 VA	General Purpose	24 VDC	-40 °C	70 °C	400 VAC
Finder Relays, Inc. 46.61.9.024.0020	4.8 VDC	5 ms	Silver Nickel (AgNi)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	17.5 VDC	16 A	20 mA	1.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	24 VDC	-40 °C	70 °C		Mechanical Indicator
Finder Relays, Inc. 46.61.9.024.0040	4.8 VDC	5 ms	Silver Nickel (AgNi)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	17.5 VDC	16 A	20 mA	1.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	24 VDC	-40 °C	70 °C
Finder Relays, Inc. 46.61.9.024.5040	4.8 VDC	5 ms	Gold (Au) Silver Nickel (AgNi)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	17.5 VDC	16 A	20 mA	1.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	24 VDC	-40 °C	70 °C
Finder Relays, Inc. 46.61.9.012.0040	2.4 VDC	5 ms	Silver Nickel (AgNi)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	8.8 VDC	16 A	40 mA	300 Ohms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	12 VDC	-40 °C	70 °C
Finder Relays, Inc. 46.61.9.024.5074	4.8 VDC	5 ms	Gold (Au) Silver Nickel (AgNi)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	17.5 VDC	16 A	20 mA	1.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	24 VDC	-40 °C	70 °C
Finder Relays, Inc. 46.61.9.024.4040	4.8 VDC	5 ms	Silver Tin Oxide (AgSnO)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	17.5 VDC	16 A	20 mA	1.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	24 VDC	-40 °C	70 °C
Finder Relays, Inc. 46.61.9.024.4074	4.8 VDC	5 ms	Silver Tin Oxide (AgSnO)	440 VAC	Non Latching	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	15 ms	17.5 VDC	16 A	20 mA	1.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	SPDT (1 Form C)	7040 VA	General Purpose	24 VDC	-40 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.33
		10	$ 7.27
		25	$ 6.89
		50	$ 6.62
		100	$ 6.35
		250	$ 6.02
		500	$ 5.78
		1000	$ 5.55

Description

General part information

46.61.9 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
