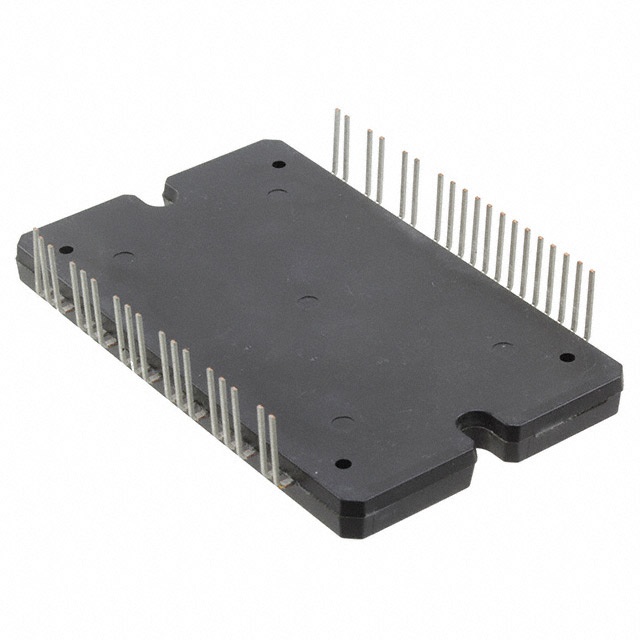

STK5F4U3E2D-E

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 50A 44DIP

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 50A 44DIP

Technical Specifications

Parameters and characteristics for this part

Specification	STK5F4U3E2D-E

Applications	AC Motors
Current - Output / Channel	50 A
Current - Peak Output	100 A
Fault Protection	Current Limiting, UVLO, Shoot-Through
Features	Bootstrap Circuit, Status Flag
Interface	Logic
Load Type	Inductive
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (3)
Package / Case	37 Leads
Package / Case	44-DIP Module
Supplier Device Package	44-DIP
Technology	IGBT
Voltage - Load	400 V
Voltage - Supply [Max]	17.5 V
Voltage - Supply [Min]	12.5 V

Part	Supplier Device Package	Package / Case	Package / Case	Output Configuration	Applications	Voltage - Load	Mounting Type	Load Type	Interface	Technology	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Fault Protection	Current - Peak Output	Features
ON Semiconductor STK5F4U3E2D-E	44-DIP	37 Leads	44-DIP Module	Half Bridge (3)	AC Motors	400 V	Through Hole	Inductive	Logic	IGBT	50 A	150 °C	-20 °C	12.5 V	17.5 V	Current Limiting Shoot-Through UVLO	100 A	Bootstrap Circuit Status Flag

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Half Bridge (3) Driver AC Motors IGBT 44-DIP
