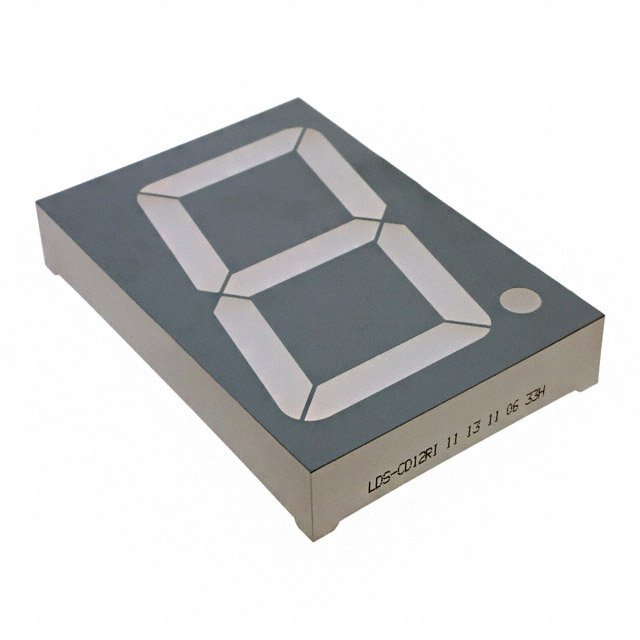

LDS-CD12RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 2.24" SGL GRN 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDS-CD12RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 2.24" SGL GRN 10DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-CD12RI |
|---|---|
| Color | Green |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size [custom] | 56.9 mm |
| Digit/Alpha Size [custom] | 2.24 in |
| Display Type | 7-Segment |
| Millicandela Rating | 6.3 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 2.367 in |
| Package / Case | 60.1 mm |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 1.882 in |
| Size / Dimension [x] | 47.8 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [z] | 2.744 in |
| Size / Dimension [z] | 69.7 mm |
| Voltage - Forward (Vf) (Typ) | 8.4 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LDS-CD12 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 8.4V 10mA 2.744" H x 1.882" W x 0.472" D (69.70mm x 47.80mm x 12.00mm) 10-DIP (2.367", 60.10mm)
