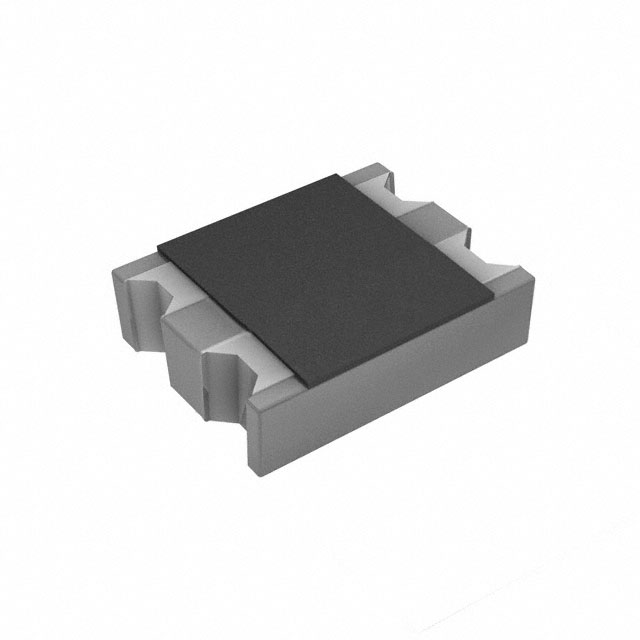

742C043104JP

Active

Tusonix a Subsidiary of CTS Electronic Components

ARRAY/NETWORK RESISTOR, ISOLATED, METAL GLAZE/THICK FILM, 0.126W, 100000OHM, 50V, 5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0606, CHIP, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

742C043104JP

Active

Tusonix a Subsidiary of CTS Electronic Components

ARRAY/NETWORK RESISTOR, ISOLATED, METAL GLAZE/THICK FILM, 0.126W, 100000OHM, 50V, 5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 0606, CHIP, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	742C043104JP

Applications	DDR SDRAM, DRAM, MDDR
Circuit Type	Isolated
Grade	Automotive
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Mounting Type	Surface Mount
Number of Pins	4
Number of Resistors	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0606, Concave
Power Per Element	63 mW
Qualification	AEC-Q200
Resistance (Ohms)	100 kOhms
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

742C043 Series

Part	Circuit Type	Applications	Mounting Type	Package / Case	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Qualification	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Power Per Element	Number of Resistors	Number of Pins	Grade	Resistance (Ohms)
Tusonix a Subsidiary of CTS Electronic Components 742C043123JP	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave	12 kOhms	-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive
Tusonix a Subsidiary of CTS Electronic Components 742C043102JTR	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave	1 kOhms	-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive
Tusonix a Subsidiary of CTS Electronic Components 742C043120JP	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave		-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive
Tusonix a Subsidiary of CTS Electronic Components 742C043103JTR	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave		-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive	10k
Tusonix a Subsidiary of CTS Electronic Components 742C043224JP	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave		-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive	220k
Tusonix a Subsidiary of CTS Electronic Components 742C043334JP	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave	330 kOhms	-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive
Tusonix a Subsidiary of CTS Electronic Components 742C043474JTR	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave		-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive	470k
Tusonix a Subsidiary of CTS Electronic Components 742C043104JP	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave	100 kOhms	-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive
Tusonix a Subsidiary of CTS Electronic Components 742C043151JP	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave	150 Ohms	-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive
Tusonix a Subsidiary of CTS Electronic Components 742C043221JP	Isolated	DDR SDRAM DRAM MDDR	Surface Mount	0606 Concave	220 Ohms	-55 °C	125 °C	0.7 mm	0.028 in	AEC-Q200	5 %	0.063 in	1.6 mm	0.063 in	1.6 mm	200 ppm/°C	63 mW	2	4	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.18
		10	$ 0.10
		25	$ 0.08
		50	$ 0.07
		100	$ 0.06
		250	$ 0.05
		500	$ 0.04
		1000	$ 0.03
	Digi-Reel®	1	$ 0.18
		10	$ 0.10
		25	$ 0.08
		50	$ 0.07
		100	$ 0.06
		250	$ 0.05
		500	$ 0.04
		1000	$ 0.03
	Tape & Reel (TR)	5000	$ 0.03
		10000	$ 0.02
		15000	$ 0.02
		25000	$ 0.02
		35000	$ 0.02

Description

General part information

742C043 Series

100k Ohm ±5% 63mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0606, Concave

Documents

Technical documentation and resources
