A02XAF02XAF22K305A

Active

JST Sales America Inc.

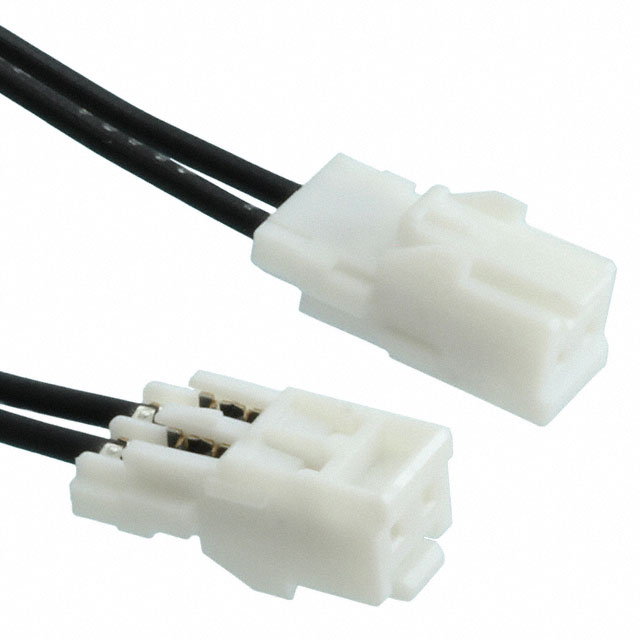

JUMPER 02XAF-2S - 02XAF-2S 12"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 02XAF-2S - 02XAF-2S 12"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Length [x]	Length [x]	Length [x]	Contact Finish	Connector Type	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Rows	Length	Length	Length	Length
JST Sales America Inc. A02XAF02XAF22K102A	2	4 "	0.333 ft	101.6 mm	Tin	Socket to Socket Reversed	2.5 mm	0.098 in	IDC	1
JST Sales America Inc. A02XAF02XAF22K102B	2	4 "	0.333 ft	101.6 mm	Tin	Socket to Socket	2.5 mm	0.098 in	IDC	1
JST Sales America Inc. A02XAF02XAF22K203A	2				Tin	Socket to Socket Reversed	2.5 mm	0.098 in	IDC	1	0.667 ft	8 in	203.2 mm
JST Sales America Inc. A02XAF02XAF22K152A	2				Tin	Socket to Socket Reversed	2.5 mm	0.098 in	IDC	1		6 "	152.4 mm	0.5 '
JST Sales America Inc. A02XAF02XAF22K305A	2				Tin	Socket to Socket Reversed	2.5 mm	0.098 in	IDC	1	1 ft		304.8 mm
JST Sales America Inc. A02XAF02XAF22K254A	2				Tin	Socket to Socket Reversed	2.5 mm	0.098 in	IDC	1	0.833 ft	10 in	254 mm
JST Sales America Inc. A02XAF02XAF22K254B	2				Tin	Socket to Socket	2.5 mm	0.098 in	IDC	1	0.833 ft	10 in	254 mm
JST Sales America Inc. A02XAF02XAF22K152B	2				Tin	Socket to Socket	2.5 mm	0.098 in	IDC	1		6 "	152.4 mm	0.5 '
JST Sales America Inc. A02XAF02XAF22K51B	2				Tin	Socket to Socket	2.5 mm	0.098 in	IDC	1	0.167 '	2 "	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Cable Assembly Rectangular Socket to Socket, Reversed 1.00' (304.80mm)
