TCD-P-3.15A

Active

OptiFuse

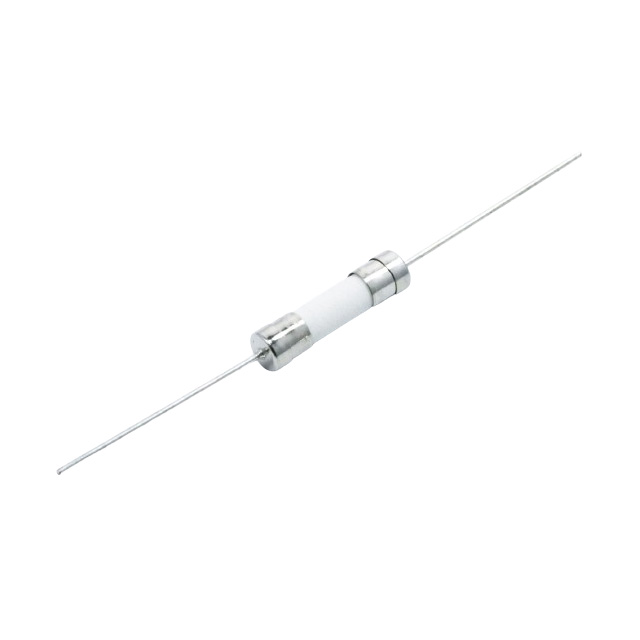

FUSE CERAMIC 3.15A 250VAC 5X20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TCD-P-3.15A

Active

OptiFuse

FUSE CERAMIC 3.15A 250VAC 5X20MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCD-P-3.15A

Approval Agency	cURus, IEC 60127
Breaking Capacity @ Rated Voltage	1.5 kA
Current Rating (Amps)	3.15 A
Fuse Type	Cartridge, Ceramic
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5.5 mm
Size / Dimension [diameter]	0.217 "
Size / Dimension [x]	0.827 in
Size / Dimension [x]	21 mm
Voltage Rating - AC	250 V

TCD Series

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case [y]	Package / Case [x]	Fuse Type	Response Time	Approval Agency	Voltage Rating - AC	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]
OptiFuse TCD-2.5A	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	2.5 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-500MA	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	0.5 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-250MA	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	IEC 60127	250 V	0.25 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-15A	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	IEC 60127	250 V	15 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-8A	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	8 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-4A	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	4 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-P-3.15A	Through Hole	0.827 in	5.5 mm	21 mm	0.217 "	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	3.15 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-5A	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	5 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-2A	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	2 A	1.5 kA	-55 °C	125 °C
OptiFuse TCD-6.3A	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	20 mm	5 mm	Cartridge Ceramic	Slow Blow	cURus IEC 60127	250 V	6.3 A	1.5 kA	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.98
		10	$ 1.94
		25	$ 1.89
		50	$ 1.59
		100	$ 1.30
		250	$ 1.18
		500	$ 0.99
		1000	$ 0.86

Description

General part information

TCD Series

3.15 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
