74AUP1G04GX4Z

Active

Freescale Semiconductor - NXP

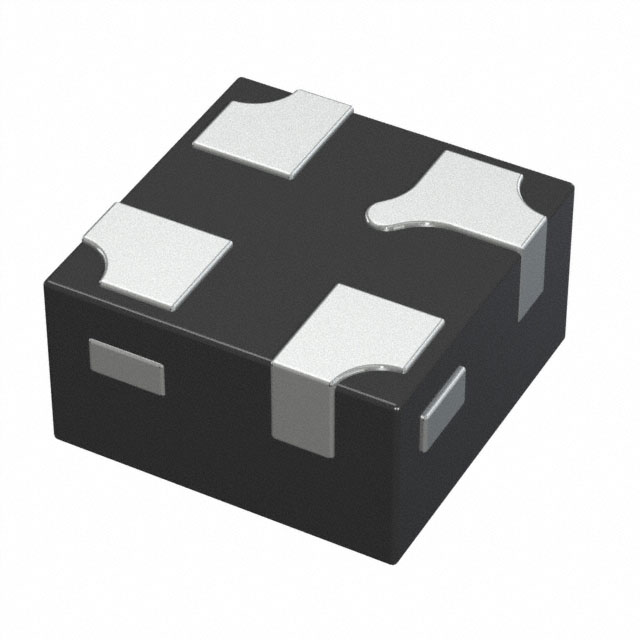

IC INVERTER 1CH 1-INP 4X2SON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

74AUP1G04GX4Z

Active

Freescale Semiconductor - NXP

IC INVERTER 1CH 1-INP 4X2SON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1G04GX4Z

Current - Output High, Low [custom]	4 mA
Current - Output High, Low [custom]	4 mA
Current - Quiescent (Max) [Max]	500 nA
Input Logic Level - High [Max]	2.6 V
Input Logic Level - High [Min]	0.75 V
Input Logic Level - Low [Max]	0.44 V
Input Logic Level - Low [Min]	0.1 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	5.4 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-XFDFN
Supplier Device Package	4-X2SON (0.6x0.6)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

74AUP1G04 Series

Part	Mounting Type	Grade	Current - Quiescent (Max) [Max]	Supplier Device Package	Logic Type	Max Propagation Delay @ V, Max CL	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Qualification	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Inputs	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]
Freescale Semiconductor - NXP 74AUP1G04GV-Q100H	Surface Mount	Automotive	500 nA	SC-74A	Inverter	5.4 ns	0.8 V	3.6 V	SC-74A SOT-753	AEC-Q100	4 mA	4 mA	1	2 V	1.6 V	125 °C	-40 °C	1
Freescale Semiconductor - NXP 74AUP1G04GW,125	Surface Mount		500 nA	5-TSSOP	Inverter	5.4 ns	0.8 V	3.6 V	5-TSSOP SC-70-5 SOT-353		4 mA	4 mA	1	2 V	1.6 V	125 °C	-40 °C	1
Freescale Semiconductor - NXP 74AUP1G04GX,125	Surface Mount		500 nA	5-X2SON (0.80x0.80)	Inverter	5.4 ns	0.8 V	3.6 V	4-XFDFN Exposed Pad		4 mA	4 mA	1	2 V	1.6 V	125 °C	-40 °C	1
Freescale Semiconductor - NXP 74AUP1G04GM,132	Surface Mount		500 nA	6-XSON SOT886 (1.45x1)	Inverter	5.4 ns	0.8 V	3.6 V	6-XFDFN		4 mA	4 mA	1	2 V	1.6 V	125 °C	-40 °C	1
Freescale Semiconductor - NXP 74AUP1G04GS,132	Surface Mount		500 nA	6-XSON SOT1202 (1x1)	Inverter	5.4 ns	0.8 V	3.6 V	6-XFDFN		4 mA	4 mA	1	2 V	1.6 V	125 °C	-40 °C	1
Freescale Semiconductor - NXP 74AUP1G04GX4Z	Surface Mount		500 nA	4-X2SON (0.6x0.6)	Inverter	5.4 ns	0.8 V	3.6 V	4-XFDFN		4 mA	4 mA	1	2.6 V	0.75 V	125 °C	-40 °C	1	0.44 V	0.1 V
Freescale Semiconductor - NXP 74AUP1G04GF,132	Surface Mount		500 nA	6-XSON SOT891 (1x1)	Inverter	5.4 ns	0.8 V	3.6 V	6-XFDFN		4 mA	4 mA	1	2 V	1.6 V	125 °C	-40 °C	1
