VS-10BQ040-M3/5BT

Active

Vishay General Semiconductor - Diodes Division

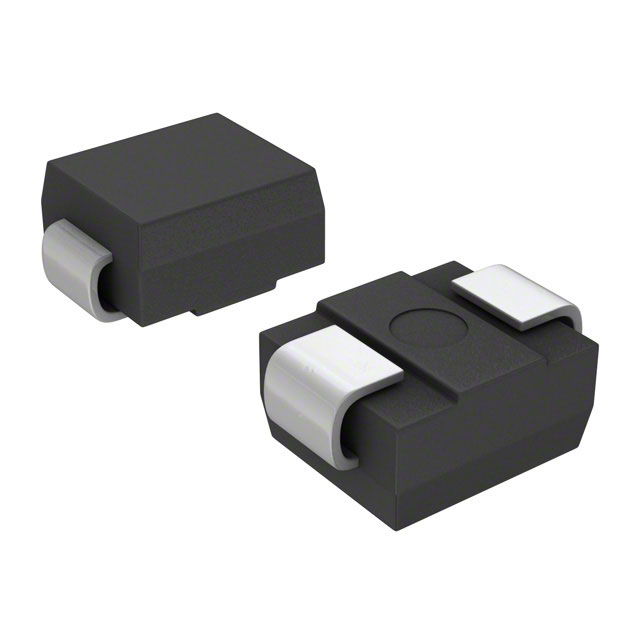

DIODE SCHOTTKY 40V 1A DO214AA

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 40V 1A DO214AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-10BQ040-M3/5BT

Capacitance @ Vr, F	115 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	100 çA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SMB, DO-214AA
Speed	200 mA, 500 ns
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	450 mV

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Supplier Device Package	Capacitance @ Vr, F	Qualification	Grade
Vishay General Semiconductor - Diodes Division VS-10BQ040PBF	150 °C	-55 °C	1 A	200 mA 500 ns	40 V	DO-214AA SMB	Surface Mount	530 mV	100 çA	Schottky	SMB	DO-214AA
Vishay General Semiconductor - Diodes Division 10BQ040TR	150 °C	-55 °C	1 A	200 mA 500 ns	40 V	DO-214AA SMB	Surface Mount	530 mV	100 çA	Schottky	SMB	DO-214AA
Vishay General Semiconductor - Diodes Division VS-10BQ040-M3/5BT	150 °C	-55 °C	1 A	200 mA 500 ns	40 V	DO-214AA SMB	Surface Mount	450 mV	100 çA	Schottky	SMB	DO-214AA	115 pF
Vishay General Semiconductor - Diodes Division VS-10BQ040HM3/5BT	150 °C	-55 °C	1 A	200 mA 500 ns	40 V	DO-214AA SMB	Surface Mount	450 mV	100 çA	Schottky	SMB	DO-214AA	115 pF	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division VS-10BQ040TRPBF	150 °C	-55 °C	1 A	200 mA 500 ns	40 V	DO-214AA SMB	Surface Mount	530 mV	100 çA	Schottky	SMB	DO-214AA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 1A Surface Mount DO-214AA (SMB)
