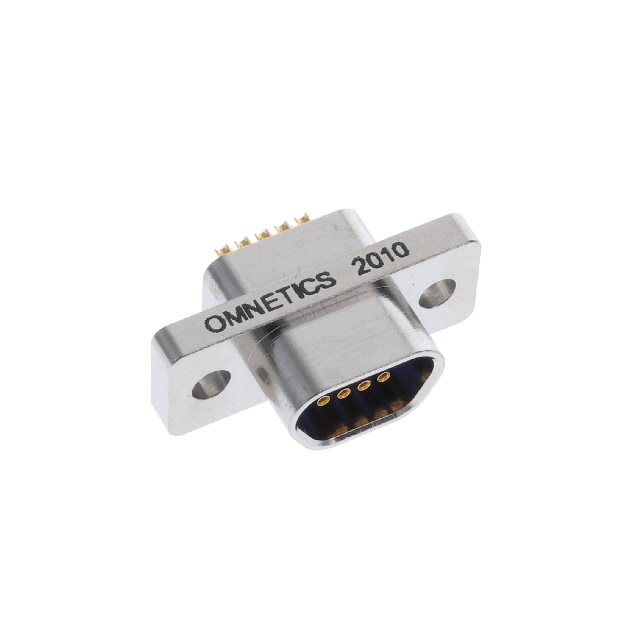

A99000-009

Active

Omnetics

CONN MICRO-D RCPT 9POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 9POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A99000-009

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05

Part	Flange Feature	Mounting Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Current Rating (Amps)	Shell Material, Finish	Contact Form	Connector Type	Contact Finish	Contact Type	Connector Style	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Shielding	Type	2nd Connector	Length [x]	Length [x]	Color
Omnetics A99000-009	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Thermoplastic	-55 °C	125 °C	9	0.05	0.05	Copper Alloy	3 A	Aluminum Electroless Nickel Plated	Stamped	Receptacle Female Sockets	Gold	Signal	D-Type Micro-D	2	50 µin	1.27 µm
Omnetics A99100-009						9								Gold				50 µin	1.27 µm	Female Sockets Receptacle	Unshielded	D-Type Micro-D	Individual Wire Leads	457.2 mm	1.5 ft	Individual Multiple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Type, Micro-D Receptacle, Female Sockets Connector
