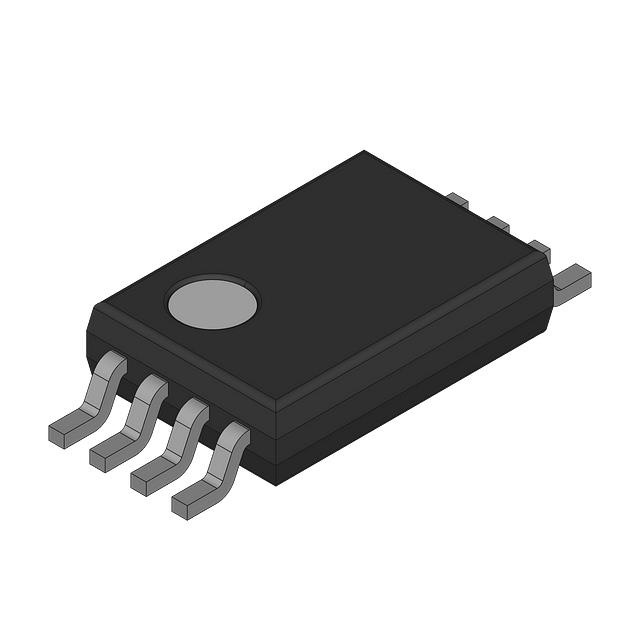

SP682EU-L
ObsoleteSipex
IC REG CHARGE PUMP -9.9V 1
Deep-Dive with AI
Search across all available documentation for this part.
SP682EU-L
ObsoleteSipex
IC REG CHARGE PUMP -9.9V 1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP682EU-L |
|---|---|
| Frequency - Switching [Max] | 20 kHz |
| Frequency - Switching [Min] | 12 kHz |
| Function | Step-Up/Inverted |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Negative |
| Output Type | 1.81 mOhm |
| Synchronous Rectifier | False |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.4 V |
| Voltage - Output (Max) [Max] | -9.99 V |
| Voltage - Output (Min/Fixed) | -9.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 833 | $ 0.36 | |
Description
General part information
SP682 Series
Charge Pump Switching Regulator IC Negative Fixed -9.9V 1 Output
Documents
Technical documentation and resources
No documents available
