SML-LX15YC-RP-TR

Active

Lumex Opto/Components Inc.

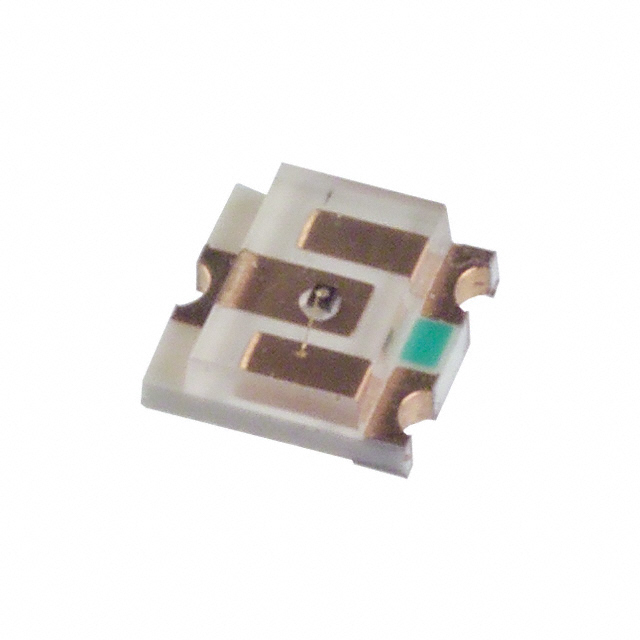

LED YELLOW CLEAR SOT23 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LX15YC-RP-TR

Active

Lumex Opto/Components Inc.

LED YELLOW CLEAR SOT23 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX15YC-RP-TR

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	3 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	10 mcd
Mounting Type	Surface Mount
Package / Case	3-SMD, SOT-23-3 variant, SC-59, TO-236
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Supplier Device Package	SOT-23
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	585 nm

SML-LX15 Series

Part	Current - Test	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Configuration	Supplier Device Package	Lens Transparency	Package / Case	Lens Style	Wavelength - Peak [custom]	Millicandela Rating	Lens Color	Color	Mounting Type	Current - Test	Millicandela Rating	Wavelength - Peak
Lumex Opto/Components Inc. SML-LX15IYC-TR	20mA Red 20mA Yellow	3 mm	2 mm	2 V 2.1 V	1 mm	140 °	3 mm	3 mm	Common Anode	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top	585 nm 635 nm	10 mcd 10 mcd	Colorless	Red Yellow	Surface Mount
Lumex Opto/Components Inc. SML-LX15SUGC-RP-TR		3 mm	2 mm	2.2 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		45 mcd	Colorless	Green	Surface Mount	20 mA
Lumex Opto/Components Inc. SML-LX15IGC-TR		3 mm	2 mm	2 V 2.1 V	1 mm	140 °	3 mm	3 mm	Common Anode	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top			Colorless	Green Red	Surface Mount	20 mA 20 mA	10mcd Green 10mcd Red	565 nm 635 nm
Lumex Opto/Components Inc. SML-LX15SIC-RP-TR		3 mm	2 mm	2 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		60 mcd	Colorless	Red	Surface Mount	20 mA		636 nm
Lumex Opto/Components Inc. SML-LX15IC-TR		3 mm	2 mm	2 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		10 mcd	Colorless	Red	Surface Mount	20 mA		635 nm
Lumex Opto/Components Inc. SML-LX15GC-TR		3 mm	2 mm	2.2 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		10 mcd	Colorless	Green	Surface Mount	20 mA		565 nm
Lumex Opto/Components Inc. SML-LX15YC-TR		3 mm	2 mm	2.1 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		10 mcd	Colorless	Yellow	Surface Mount	20 mA		585 nm
Lumex Opto/Components Inc. SML-LX15YC-RP-TR		3 mm	2 mm	2.1 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		10 mcd	Colorless	Yellow	Surface Mount	20 mA		585 nm
Lumex Opto/Components Inc. SML-LX15SRC-TR		3 mm	2 mm	1.7 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		20 mcd	Colorless	Red	Surface Mount	20 mA		660 nm
Lumex Opto/Components Inc. SML-LX15IIC-RP-TR		3 mm	2 mm	2 V	1 mm	140 °	3 mm	3 mm	Standard	SOT-23	Clear	3-SMD SC-59 SOT-23-3 variant TO-236	Rectangle with Flat Top		10 mcd	Colorless	Red	Surface Mount	20 mA		635 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.57
		10	$ 0.35
		100	$ 0.20
		1000	$ 0.16
	Digi-Reel®	1	$ 0.57
		10	$ 0.35
		100	$ 0.20
		1000	$ 0.16
	Tape & Reel (TR)	3000	$ 0.14
		6000	$ 0.13
		15000	$ 0.12
		30000	$ 0.12
		75000	$ 0.11

Description

General part information

SML-LX15 Series

Yellow LED Indication - Discrete 2.1V TO-236, SC-59, SOT-23-3 variant, 3-SMD
