NFM21HC474R1A3D

Active

Murata Power Solutions Inc.

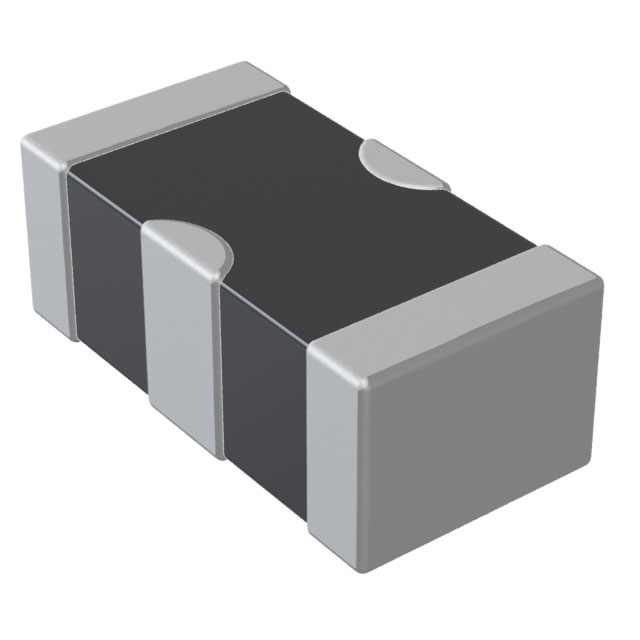

CAP FEEDTHRU 0.47UF 20% 10V 0805

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet NFM Part Numbering

NFM21HC474R1A3D

Active

Murata Power Solutions Inc.

CAP FEEDTHRU 0.47UF 20% 10V 0805

Deep-Dive with AI

DocumentsDatasheet NFM Part Numbering

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NFM21HC474R1A3D

Capacitance	0.47 µF
Current	2 A
DC Resistance (DCR) (Max) [Max]	30 mOhm
Height (Max)	0.95 mm
Height (Max) [Max]	0.037 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805 (2012 Metric)
Package / Case	3 Lead
Ratings	AEC-Q200
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Tolerance	20 %
Voltage - Rated	10 V

NFM21HC Series

Part	Package / Case	Filter Order	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current	Height [z]	Height [z]	Technology	Values	Mounting Type	Voltage - Rated	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max)	Height (Max) [Max]	Package / Case	DC Resistance (DCR) (Max) [Max]	Tolerance	Ratings	Capacitance	Voltage - Rated [custom]	DC Resistance (DCR) (Max)
Murata Power Solutions Inc. NFM21HC224R1A3D	0805	2nd	Low Pass	2 mm	0.079 in	0.049 in	1.25 mm	2 A	0.037 in	0.95 mm	LC (T-Type)	0.22 µF	Surface Mount	10 V	1	-55 °C	125 °C
Murata Power Solutions Inc. NFM21HC220U1H3D	0805	2nd	Low Pass	2 mm	0.079 in	0.049 in	1.25 mm	700 mA	0.037 in	0.95 mm	LC (T-Type)	22 pF	Surface Mount		1	-55 °C	125 °C
Murata Power Solutions Inc. NFM21HC474R1A3D	0805 (2012 Metric)			2 mm	0.079 in	0.049 in	1.25 mm	2 A					Surface Mount	10 V		-55 °C	125 °C	0.95 mm	0.037 in	3 Lead	30 mOhm	20 %	AEC-Q200	0.47 µF
Murata Power Solutions Inc. NFM21HC471R1H3D	0805	2nd	Low Pass	2 mm	0.079 in	0.049 in	1.25 mm	1 A	0.037 in	0.95 mm	LC (T-Type)	470 pF	Surface Mount		1	-55 °C	125 °C
Murata Power Solutions Inc. NFM21HC102R1H3D	0805	2nd	Low Pass	2 mm	0.079 in	0.049 in	1.25 mm	1 A	0.037 in	0.95 mm	LC (T-Type)	1000 pF	Surface Mount	50 VDC	1	-55 °C	125 °C
Murata Power Solutions Inc. NFM21HC223R1H3D	0805 (2012 Metric)			2 mm	0.079 in	0.049 in	1.25 mm	2 A					Surface Mount	50 VDC		-55 °C	125 °C	0.95 mm	0.037 in	3 Lead	30 mOhm	20 %	AEC-Q200	0.022 µF
Murata Power Solutions Inc. NFM21HC221R1H3D	0805	2nd	Low Pass	2 mm	0.079 in	0.049 in	1.25 mm	700 mA	0.037 in	0.95 mm	LC (T-Type)	220 pF	Surface Mount		1	-55 °C	125 °C
Murata Power Solutions Inc. NFM21HC105R1C3D	0805 (2012 Metric)			2 mm	0.079 in	0.049 in	1.25 mm	4 A					Surface Mount			-55 °C	125 °C	0.95 mm	0.037 in	3 Lead		20 %	AEC-Q200	1 µF	16 V	20 mOhm
