T4162114004-006
ActiveTE Connectivity Raychem Cable Protection

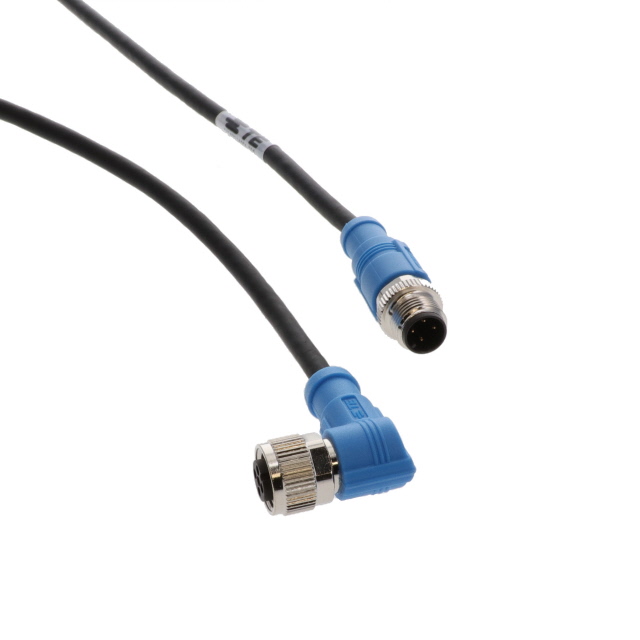

SENSOR CABLE, M12 PLUG, 90° M12 RECEPTACLE, 4 POSITIONS, 7 M, 23 FT, T416 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
T4162114004-006
ActiveTE Connectivity Raychem Cable Protection
SENSOR CABLE, M12 PLUG, 90° M12 RECEPTACLE, 4 POSITIONS, 7 M, 23 FT, T416 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4162114004-006 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | 4 |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | 4 positions |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug, Right Angle |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 7 m |
| Length [x] | 23 ' |
| Shielding | Shielded |
| Usage | Industrial Environments |
T41621 Series
| Part | 2nd Connector Type | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | Ingress Protection | 1st Connector Orientation | 2nd Connector Shell Size - Insert | 2nd Connector Number of Positions | 2nd Connector Mounting Type | Color | 1st Connector Gender | Usage | 2nd Connector Gender | Shielding | Cable Material | Cable Type | 1st Connector Number of Positions | Length [x] | Length [x] | Assembly Configuration | 1st Connector Mounting Type | 2nd Connector Number of Positions Loaded | 1st Connector Type | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Plug | 4 | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Gray | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyurethane (PUR) | Round | 5 | 1 m | 3.28 ft | Standard | Free Hanging (In-Line) | 4 positions | Receptacle | ||
TE Connectivity Raychem Cable Protection | Plug Right Angle | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Black | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyvinyl Chloride (PVC) | Round | 5 | 3 m | 9.84 ft | Standard | Free Hanging (In-Line) | Receptacle | All | All | ||
TE Connectivity Raychem Cable Protection | Plug | 4 | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Gray | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyurethane (PUR) | Round | 5 | 500 mm | 1.64 ft | Standard | Free Hanging (In-Line) | 4 positions | Receptacle | ||
TE Connectivity Raychem Cable Protection | Plug | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Gray | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyurethane (PUR) | Round | 5 | 1 m | 3.28 ft | Standard | Free Hanging (In-Line) | Receptacle | All | All | ||
TE Connectivity Raychem Cable Protection | Plug Right Angle | 4 | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Black | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyvinyl Chloride (PVC) | Round | 5 | 7 m | 23 ' | Standard | Free Hanging (In-Line) | 4 positions | Receptacle | ||
TE Connectivity Raychem Cable Protection | Plug Right Angle | M12 | IP67 - Dust Tight Waterproof | A | M12 | 8 | Free Hanging (In-Line) | Black | Male Pins | Industrial Environments | Female Sockets | Unshielded | Polyvinyl Chloride (PVC) | Round | 8 positions | 500 mm | 1.64 ft | Standard | Free Hanging (In-Line) | Receptacle | All | All | ||
TE Connectivity Raychem Cable Protection | Plug Right Angle | 4 | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Gray | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyurethane (PUR) | Round | 5 | 1 m | 3.28 ft | Standard | Free Hanging (In-Line) | 4 positions | Receptacle | ||
TE Connectivity Raychem Cable Protection | Plug | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Black | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyvinyl Chloride (PVC) | Round | 5 | 500 mm | 1.64 ft | Standard | Free Hanging (In-Line) | Receptacle | All | All | ||
TE Connectivity Raychem Cable Protection | Plug Right Angle | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Gray | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyurethane (PUR) | Round | 5 | 500 mm | 1.64 ft | Standard | Free Hanging (In-Line) | Receptacle | All | All | ||
TE Connectivity Raychem Cable Protection | Plug | 4 | M12 | IP67 - Dust Tight Waterproof | A | M12 | 5 | Free Hanging (In-Line) | Black | Male Pins | Industrial Environments | Female Sockets | Shielded | Polyvinyl Chloride (PVC) | Round | 5 | Standard | Free Hanging (In-Line) | 4 positions | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 46.67 | |
| 10 | $ 38.52 | |||
| 26 | $ 35.81 | |||
| 50 | $ 33.83 | |||
| 100 | $ 33.09 | |||
| 250 | $ 32.84 | |||
Description
General part information
T41621 Series
M12 Cable Assembly, 4 Position, Cable Assembly Length 7 m [22.9 ft], Sensor/Actuator, A Code, M12 Plug End A, M12 Socket End B, Shielded, Double Ended
