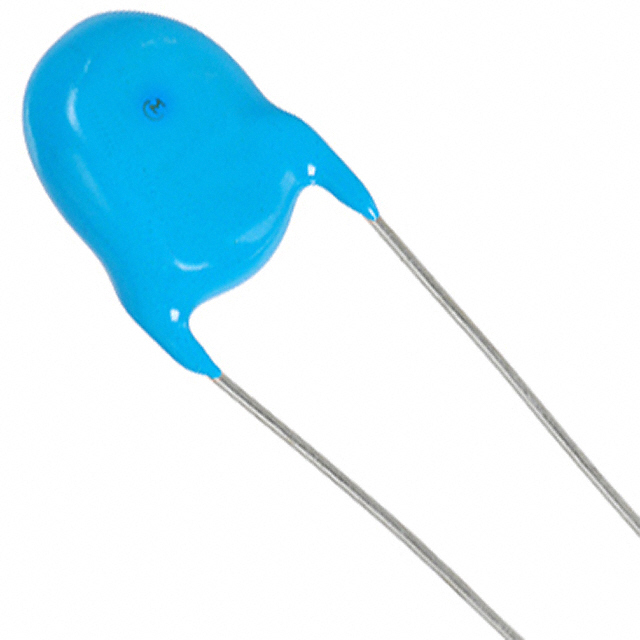

DECE33J102ZC4B

Obsolete

Murata Power Solutions Inc.

CAP CER 1000PF 6.3KV RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP CER 1000PF 6.3KV RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	DECE33J102ZC4B

Applications	General Purpose
Capacitance	0.001 µF
Features	Flame Retardant, High Voltage
Height - Seated (Max) [Max]	15 mm
Height - Seated (Max) [Max]	0.591 "
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Disc, Radial
Size / Dimension [diameter]	11 mm
Size / Dimension [diameter]	0.433 "
Temperature Coefficient	E
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	6300 V
Voltage - Rated	6.3 kV

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance [Max]	Tolerance [Min]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Temperature Coefficient	Features	Voltage - Rated	Voltage - Rated	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Lead Style
Murata Power Solutions Inc. DECE33J102ZC4B	15 mm	0.591 "	80 %	-20 %	0.001 µF	11 mm	0.433 "	Disc Radial	E	Flame Retardant High Voltage	6300 V	6.3 kV	Through Hole	General Purpose	-25 °C	85 °C	0.394 in	10 mm	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1000 pF -20%, +80% 6300V (6.3kV) Ceramic Capacitor E Radial, Disc
