19370241421

Active

HARTING Technology Group

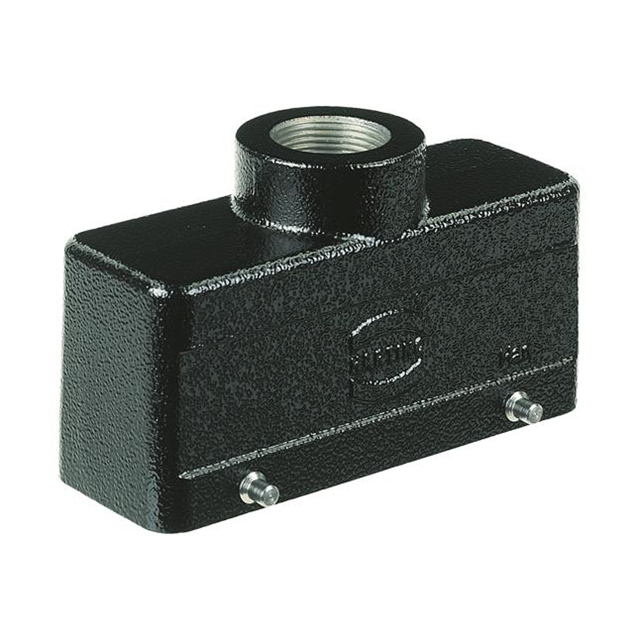

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN® M; M25

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN® M; M25

Technical Specifications

Parameters and characteristics for this part

Specification	19370241421

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.165 in
Size / Dimension [z]	55 mm
Style	Top Entry
Thread Size	M25

Part	Housing Finish	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Ingress Protection	Size	Style	Lock Location
HARTING Technology Group 19370241421	Powder Coated	M25	125 °C	-40 °C	Aluminum Die Cast	Black	1.693 in	120 mm	4.724 "	2.165 in	55 mm	43 mm	Hood	IP65 - Dust Tight Water Resistant	24 B	Top Entry	Locking Clip (2) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 24B IP65 - Dust Tight, Water Resistant
