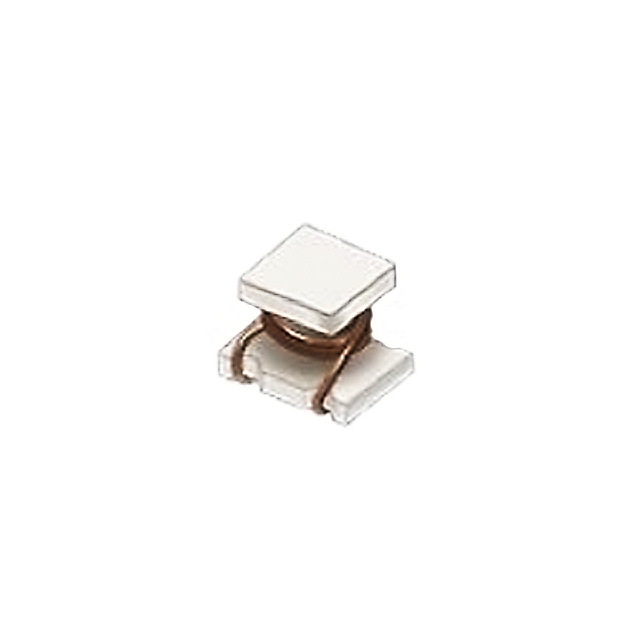

LQW2BHN6N8D03L

LTB

Murata Power Solutions Inc.

FIXED IND 6.8NH 680MA 0.11OHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW2BHN6N8D03L

LTB

Murata Power Solutions Inc.

FIXED IND 6.8NH 680MA 0.11OHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW2BHN6N8D03L

Current Rating (Amps)	0.68 A
DC Resistance (DCR)	110 mOhm
Frequency - Self Resonant	5.4 GHz
Height - Seated (Max) [Max] [z]	1.78 mm
Height - Seated (Max) [Max] [z]	0.07 in
Inductance	6.8 nH
Inductance Frequency - Test	100 MHz
Material - Core	Non-Magnetic
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	250 MHz, 20
Shielding	Unshielded
Size / Dimension [x]	0.079 in
Size / Dimension [x]	2 mm
Size / Dimension [y]	1.5 mm
Size / Dimension [y]	0.059 "
Supplier Device Package	0805 (2012 Metric)
Tolerance	0.5 nH
Type	Wirewound, Drum Core

LQW2BHN Series

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Shielding	Material - Core	Package / Case	Q @ Freq	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Tolerance	Inductance Frequency - Test	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	DC Resistance (DCR)
Murata Power Solutions Inc. LQW2BHN47NJ03L	0805 (2012 Metric)	85 °C	-40 °C	47 nH	Unshielded	Non-Magnetic	Nonstandard	40 200 MHz	230 mOhm	1.6 GHz	1.78 mm	0.07 in	450 mA	5 %	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
Murata Power Solutions Inc. LQW2BHNR47J03L	0805 (2012 Metric)	85 °C	-40 °C	470 nH	Unshielded	Non-Magnetic	Nonstandard	15 25.2 MHz	2.8 Ohm	350 MHz	1.78 mm	0.07 in	160 mA	5 %	10 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
Murata Power Solutions Inc. LQW2BHN3N3D03L	0805 (2012 Metric)	85 °C	-40 °C	3.3 nH	Unshielded	Non-Magnetic	Nonstandard	10 250 MHz		6 GHz	1.78 mm	0.07 in	910 mA	0.5 nH	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount	50 mOhm
Murata Power Solutions Inc. LQW2BHN47NG03L	0805 (2012 Metric)	85 °C	-40 °C	47 nH	Unshielded	Non-Magnetic	Nonstandard	40 200 MHz	230 mOhm	1.6 GHz	1.78 mm	0.07 in	450 mA	2 %	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
Murata Power Solutions Inc. LQW2BHN56NJ03L	0805 (2012 Metric)	85 °C	-40 °C	56 nH	Unshielded	Non-Magnetic	Nonstandard	40 200 MHz	260 mOhm	1.5 GHz	1.78 mm	0.07 in	430 mA	5 %	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
Murata Power Solutions Inc. LQW2BHN22NJ03L	0805 (2012 Metric)	85 °C	-40 °C	22 nH	Unshielded	Non-Magnetic	Nonstandard	30 250 MHz	90 mOhm	2.1 GHz	1.78 mm	0.07 in	0.72 A	5 %	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
Murata Power Solutions Inc. LQW2BHN6N8D03L	0805 (2012 Metric)	85 °C	-40 °C	6.8 nH	Unshielded	Non-Magnetic	Nonstandard	20 250 MHz		5.4 GHz	1.78 mm	0.07 in	0.68 A	0.5 nH	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount	110 mOhm
Murata Power Solutions Inc. LQW2BHN39NG03L	0805 (2012 Metric)	85 °C	-40 °C	39 nH	Unshielded	Non-Magnetic	Nonstandard	40 250 MHz	90 mOhm	1.7 GHz	1.78 mm	0.07 in	0.73 A	2 %	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
Murata Power Solutions Inc. LQW2BHN68NG03L	0805 (2012 Metric)	85 °C	-40 °C	68 nH	Unshielded	Ferrite	Nonstandard	40 200 MHz	230 mOhm	1.2 GHz	1.78 mm	0.07 in	460 mA	2 %	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
Murata Power Solutions Inc. LQW2BHN33NJ03L	0805 (2012 Metric)	85 °C	-40 °C	33 nH	Unshielded	Non-Magnetic	Nonstandard	40 250 MHz	150 mOhm	1.9 GHz	1.78 mm	0.07 in	570 mA	5 %	100 MHz	Drum Core Wirewound	0.079 in	2 mm	1.5 mm	0.059 "	Surface Mount
