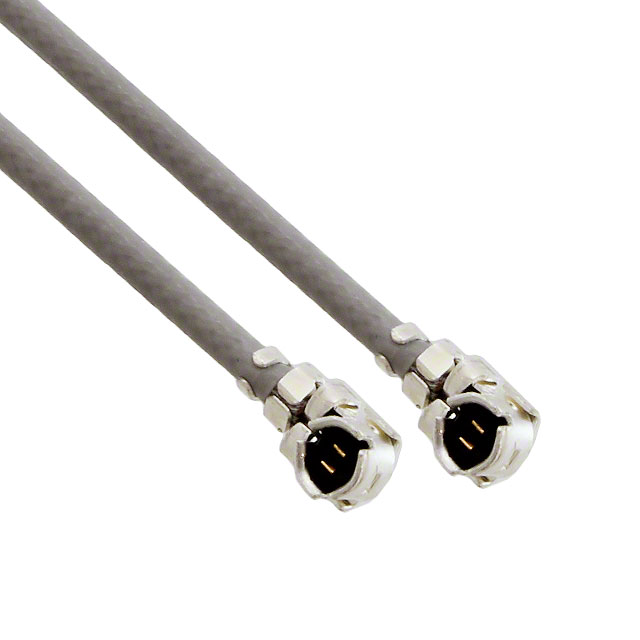

A-1PA-132-300G2

Active

Amphenol RF

CBL ASSY U.FL UMCC PL-PL 11.811"

Deep-Dive with AI

Search across all available documentation for this part.

A-1PA-132-300G2

Active

Amphenol RF

CBL ASSY U.FL UMCC PL-PL 11.811"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-1PA-132-300G2

1st Connector	U.FL (UMCC), AMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.32mm OD Coaxial Cable
Color	Gray
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	300 mm
Length [x]	11.811 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	AMC, AMC to U.FL (UMCC), U.FL (UMCC)

A-1PA-132 Series

Part	Style	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	1st Contact Gender	Color	2nd Connector	1st Connector	Features	Frequency - Max [Max]	Overall Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Length [x]	Length [x]	Length	Length
Amphenol RF A-1PA-132-150B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable	150 mm	5.906 "
Amphenol RF A-1PA-132-180B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable		7.087 "	180 mm
Amphenol RF A-1PA-132-300G2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Gray	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable	300 mm	11.811 in
Amphenol RF A-1PA-132-300B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable	300 mm	11.811 in
Amphenol RF A-1PA-132-305B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable			304.8 mm	12 "
Amphenol RF A-1PA-132-050B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable	50 mm	1.969 in
Amphenol RF A-1PA-132-125G2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Gray	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable		4.902 in	124.5 mm
Amphenol RF A-1PA-132-610B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable			609.6 mm	24 "
Amphenol RF A-1PA-132-200B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable			200 mm	7.874 in
Amphenol RF A-1PA-132-250B2	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Black	AMC Plug Right Angle U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Shielded	6000 MHz	50 Ohms	90 °C	-40 °C	1.32mm OD Coaxial Cable	250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.60

Description

General part information

A-1PA-132 Series

Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC 1.32mm OD Coaxial Cable 11.811" (300.00mm)
