Q-2Z01S00082.5M

Active

Amphenol Custom Cable

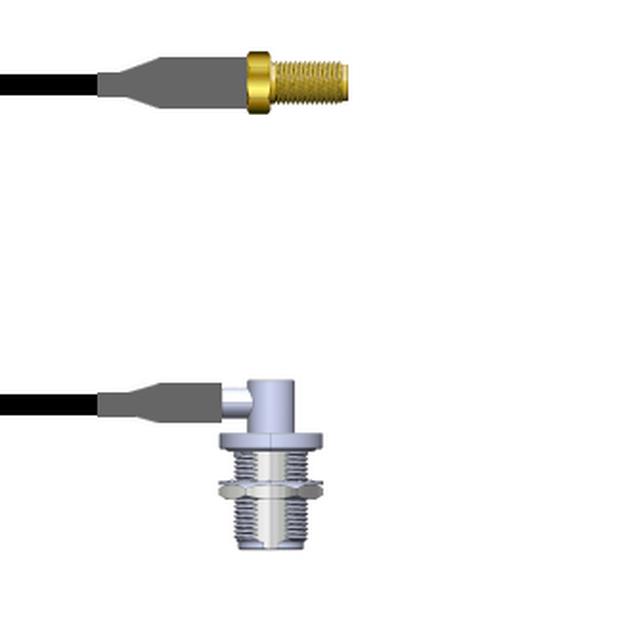

COAX CBL SMA TO N-TYPE 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2Z01S00082.5M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	Connector Impedance	2nd Connector Mounting Feature	1st Connector	Overall Impedance	Color	2nd Connector Mounting Type	Length	Length	Length	Frequency - Max [Max]	2nd Contact Gender	Style	1st Connector Mounting Type	Features	Cable Impedance	Cable Type	1st Contact Gender	2nd Connector
Amphenol Custom Cable Q-2Z01S00082.5M	50 Ohms	Bulkhead - Front Side Nut	SMA Jack	50 Ohms	Black	Panel Mount	8.2 '	98.4 in	2.5 m	1 GHz	Female	SMA to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	RG-58	Female	N-Type Jack Right Angle
Amphenol Custom Cable Q-2Z01S0008003M	50 Ohms	Bulkhead - Front Side Nut	SMA Jack	50 Ohms	Black	Panel Mount	9.8 '	118.1 in	3 m	1 GHz	Female	SMA to N-Type	Free Hanging (In-Line)	Shielded	50 Ohms	RG-58	Female	N-Type Jack Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-58 98.4" (2.5m) 8.2'
