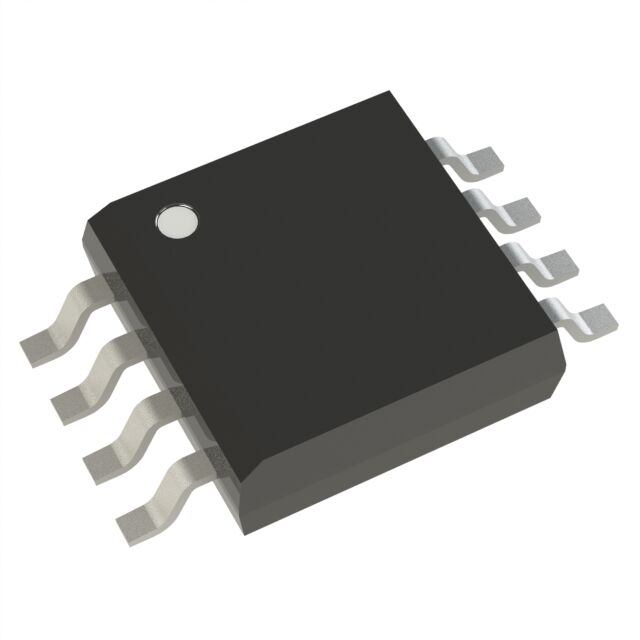

IL 711S-1ETR7

Active

NVE Corp/Isolation Products

DGTL ISO 1KV 2CH CAN 8-TSSOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IL 711S-1ETR7

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	100 V/ns
Data Rate	150 Mbps
Inputs - Side 1/Side 2 [custom]	2
Inputs - Side 1/Side 2 [custom]	0
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
Propagation Delay tpLH / tpHL (Max) [custom]	15 ns
Propagation Delay tpLH / tpHL (Max) [custom]	15 ns
Pulse Width Distortion (Max) [Max]	3 ns
Rise / Fall Time (Typ) [custom]	1 ns
Rise / Fall Time (Typ) [custom]	1 ns
Supplier Device Package	8-MSOP
Technology	GMR (Giant Magnetoresistive)
Type	CAN, RS485
Voltage - Isolation	1000 VAC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

IL 711 Series

Part	Package / Case	Package / Case [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Channels [custom]	Type	Pulse Width Distortion (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Inputs - Side 1/Side 2 [custom]	Voltage - Isolation	Supplier Device Package	Channel Type	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [y]	Package / Case [x]	Package / Case
NVE Corp/Isolation Products IL 711S-1ETR7	8-MSOP 8-TSSOP	0.118 in	3 mm	100 °C	-40 °C	GMR (Giant Magnetoresistive)	150 Mbps	2.7 V	5.5 V	2	CAN RS485	3 ns	100 V/ns	15 ns	15 ns	2	1000 VAC	8-MSOP	Unidirectional	Surface Mount	1 ns	1 ns
NVE Corp/Isolation Products IL 711T-3E	8-SOIC			125 °C	-40 °C	GMR (Giant Magnetoresistive)	110 MBd	3 V	5.5 V	2	General Purpose	3 ns	100 V/ns	15 ns	15 ns	2	2500 Vrms	8-SOIC	Unidirectional	Surface Mount	1 ns	1 ns	3.9 mm	0.154 in
NVE Corp/Isolation Products IL 711-3B	8-SOIC			125 °C	-55 °C	GMR (Giant Magnetoresistive)	110 MBd	3 V 4.5 V	5.5 V	2	General Purpose	3 ns	100 V/ns	15 ns	15 ns	2	2500 Vrms	8-SOIC	Unidirectional	Surface Mount	1 ns	1 ns	3.9 mm	0.154 in
NVE Corp/Isolation Products IL 711-1ETR7	8-MSOP 8-TSSOP	0.118 in	3 mm	100 °C	-40 °C	GMR (Giant Magnetoresistive)	110 MBd	3 V	5.5 V	2	RS422 RS485	3 ns	100 V/ns	15 ns	15 ns	2	2500 Vrms	8-MSOP	Unidirectional	Surface Mount	1 ns	1 ns
NVE Corp/Isolation Products IL 711-3E	8-SOIC			100 °C	-40 °C	GMR (Giant Magnetoresistive)	110 MBd	3 V	5.5 V	2	General Purpose	3 ns	100 V/ns	15 ns	15 ns	2	2500 Vrms	8-SOIC	Unidirectional	Surface Mount	1 ns	1 ns	3.9 mm	0.154 in
NVE Corp/Isolation Products IL 711T-2E	8-DIP		0.3 in	125 °C	-40 °C	GMR (Giant Magnetoresistive)	110 MBd	3 V	5.5 V	2	General Purpose	3 ns	100 V/ns	15 ns	15 ns	2	2500 Vrms	8-PDIP	Unidirectional	Through Hole	1 ns	1 ns			7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.04
		10	$ 6.10
		25	$ 5.33
		100	$ 4.47
		250	$ 4.04
		500	$ 4.00
	Digi-Reel®	1	$ 9.04
		10	$ 6.10
		25	$ 5.33
		100	$ 4.47
		250	$ 4.04
		500	$ 4.00
	Tape & Reel (TR)	1000	$ 4.00

Description

General part information

IL 711 Series

CAN, RS485 Digital Isolator 1000Vrms 2 Channel 150Mbps 100kV/µs CMTI 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
