CAB432RF-0200-A-1

Active

GCT

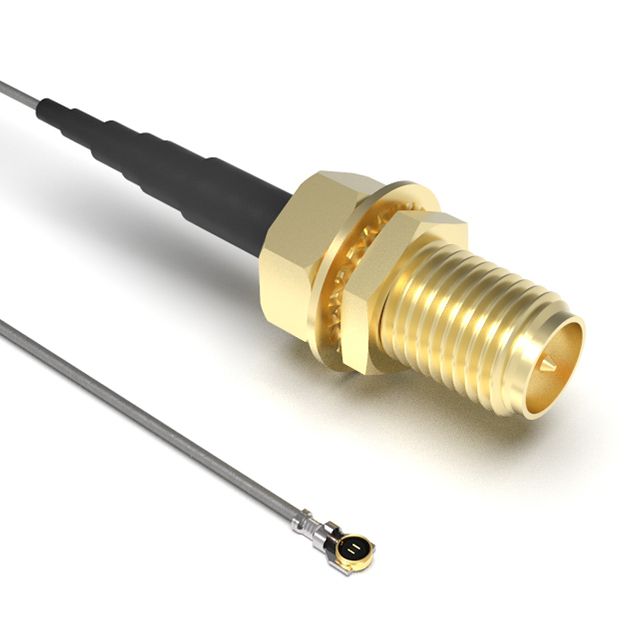

CBL ASSY RPSMA-MHF5L J-PL 7.874"

Search across all available documentation for this part.

Active

GCT

CBL ASSY RPSMA-MHF5L J-PL 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	CAB432RF-0200-A-1

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	IPEX MHF5L Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Frequency - Max [Max]	6000 MHz
Length	7.874 in
Length	200 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	RP-SMA to IPEX MHF5L

Part	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector Mounting Type	Cable Type	1st Contact Gender	1st Connector	1st Connector Mounting Type	Color	Length	Length	2nd Connector	Cable Impedance	Overall Impedance	2nd Contact Gender	1st Connector Mounting Feature	Style	Frequency - Max [Max]
GCT CAB432RF-0200-A-1	85 °C	-40 °C	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	Male	RP-SMA Jack	Panel Mount	Gray	7.874 in	200 mm	IPEX MHF5L Plug Right Angle	50 Ohms	50 Ohms	Female	Bulkhead - Front Side Nut	RP-SMA to IPEX MHF5L	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 8.55

General part information

Cable Assembly Coaxial RP-SMA to IPEX MHF5L 1.13mm OD Coaxial Cable 7.874" (200.00mm)
