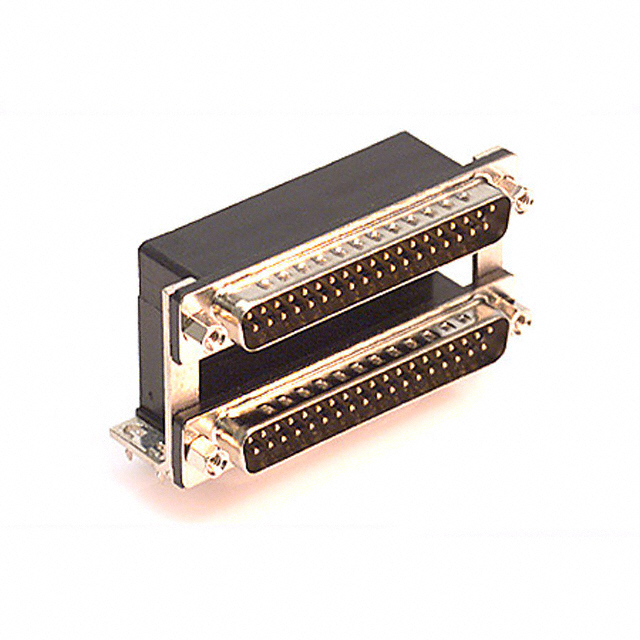

179-037-613R571
ActiveMH Connectors
STACKED D SUB CONNECTOR, 179 SERIES, DC, PLUG, 37 CONTACTS, DC, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
179-037-613R571
ActiveMH Connectors
STACKED D SUB CONNECTOR, 179 SERIES, DC, PLUG, 37 CONTACTS, DC, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 179-037-613R571 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
179-037 Series
The 179 series 0.9-inch spacing right angle Dual-port D-sub Connectors with high performance stamped contacts, male to male connectors. It has brass contacts with gold flash-plating, glass-filled thermoplastic insulator and nickel-plated, steel shell. It provides proper mating while maximizing available board space.
