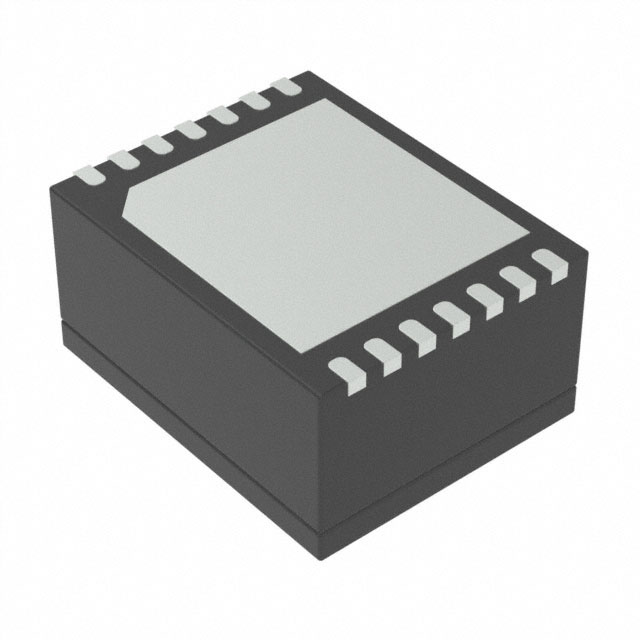

MLX90818LXE-BBG-017-RE

Active

Melexis Technologies NV

SENSOR 58.02PSIA 16BIT 14DFN

Search across all available documentation for this part.

Active

Melexis Technologies NV

SENSOR 58.02PSIA 16BIT 14DFN

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Accuracy	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Termination Style	Package / Case	Mounting Type	Features	Supplier Device Package	Output
Melexis Technologies NV MLX90818LXE-BBG-017-SP	1.81 mOhm	0.5 %	58.02 PSI	0.1 bar	1.45 PSI	4 bar	4.5 V	5.5 V	No Port	SMD (SMT) Tab	14-BFDFN Exposed Pad	Surface Mount	Temperature Compensated	14-DFN (4x5)	16 b
Melexis Technologies NV MLX90818LXE-BBG-017-RE	1.81 mOhm	0.5 %	58.02 PSI	0.1 bar	1.45 PSI	4 bar	4.5 V	5.5 V	No Port	SMD (SMT) Tab	14-BFDFN Exposed Pad	Surface Mount	Temperature Compensated	14-DFN (4x5)	16 b
Melexis Technologies NV MLX90818LXE-BBG-015-SP	1.81 mOhm	0.5 %	58.02 PSI	0.1 bar	1.45 PSI	4 bar	4.5 V	5.5 V	No Port	SMD (SMT) Tab	14-BFDFN Exposed Pad	Surface Mount	Temperature Compensated	14-DFN (4x5)	16 b
Melexis Technologies NV MLX90818LXE-BBG-016-RE	1.81 mOhm	0.5 %	43.51 PSI	0.1 bar	1.45 PSI	3 bar	4.5 V	5.5 V	No Port	SMD (SMT) Tab	14-BFDFN Exposed Pad	Surface Mount	Temperature Compensated	14-DFN (4x5)	16 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 5.87

General part information

Pressure Sensor 1.45PSI ~ 58.02PSI (10kPa ~ 400kPa) Absolute 16 b 14-BFDFN Exposed Pad
