1241.1100.7094

Active

SCHURTER Inc.

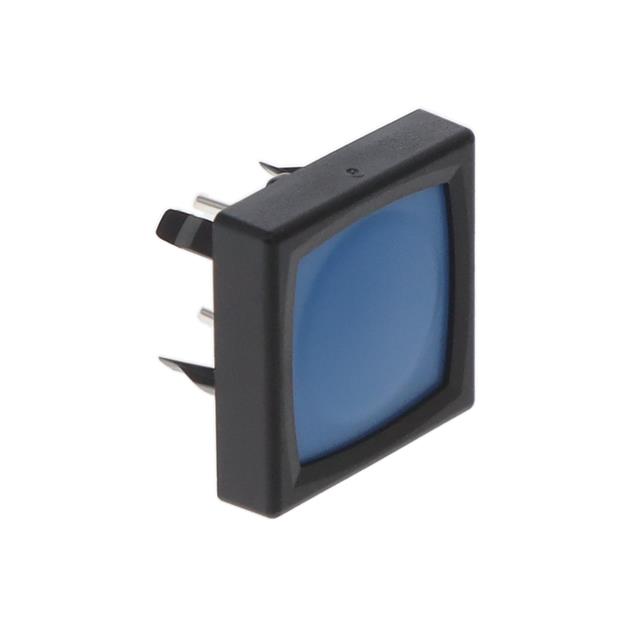

MCS18 SWITCH MOMENTARY SILVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1241.1100.7094

Active

SCHURTER Inc.

MCS18 SWITCH MOMENTARY SILVER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1241.1100.7094

Actuator Marking	No Marking
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	125 mA
Electrical Life	1000000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	13 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	48 V

1241.1100 Series

Pushbutton Switches MCS 18 Fp. qd. sw-rt

Part	Ingress Protection	Mechanical Life	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Type	Features	Switch Function	Circuit	Electrical Life	Actuator Marking	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap
SCHURTER Inc. 1241.1100.7096	IP65 - Dust Tight Water Resistant	1000000 Cycles	125 mA	-25 °C	60 °C	Panel Mount Snap-In	Solder Lug	Standard	Tactile Feedback	Off-Mom	SPST-NO	1000000 Cycles	No Marking	48 V	13 mm
SCHURTER Inc. 1241.1100.7094	IP65 - Dust Tight Water Resistant	1000000 Cycles	125 mA	-25 °C	60 °C	Panel Mount Snap-In	Solder Lug	Standard	Tactile Feedback	Off-Mom	SPST-NO	1000000 Cycles	No Marking	48 V	13 mm	Silver
SCHURTER Inc. 1241.1100.8036	IP65 - Dust Tight Water Resistant	1000000 Cycles	125 mA	-25 °C	60 °C	Panel Mount Snap-In	Solder Lug	Standard	Tactile Feedback	Off-Mom	SPST-NO	1000000 Cycles	No Marking	48 V	13 mm
SCHURTER Inc. 1241.1100.7093	IP65 - Dust Tight Water Resistant	1000000 Cycles	125 mA	-25 °C	60 °C	Panel Mount Snap-In	Solder Lug	Standard	Tactile Feedback	Off-Mom	SPST-NO	1000000 Cycles	No Marking	48 V	13 mm	Red
SCHURTER Inc. 1241.1100.8032	IP65 - Dust Tight Water Resistant	1000000 Cycles	125 mA	-25 °C	60 °C	Panel Mount Snap-In	Solder Lug	Standard	Tactile Feedback	Off-Mom	SPST-NO	1000000 Cycles	No Marking	48 V	13 mm
SCHURTER Inc. 1241.1100.7047	IP65 - Dust Tight Water Resistant	1000000 Cycles	125 mA	-25 °C	60 °C	Panel Mount Snap-In	Solder Lug	Standard	Tactile Feedback	Off-Mom	SPST-NO	1000000 Cycles	No Marking	48 V	13 mm
SCHURTER Inc. 1241.1100.7058	IP65 - Dust Tight Water Resistant	1000000 Cycles	125 mA	-25 °C	60 °C	Panel Mount Snap-In	Solder Lug	Standard	Tactile Feedback	Off-Mom	SPST-NO	1000000 Cycles	No Marking	48 V	13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.32
		50	$ 7.12
		100	$ 5.55

Description

General part information

1241.1100 Series

Pushbutton Switches MCS 18 Fp. qd. sw-rt

Documents

Technical documentation and resources
