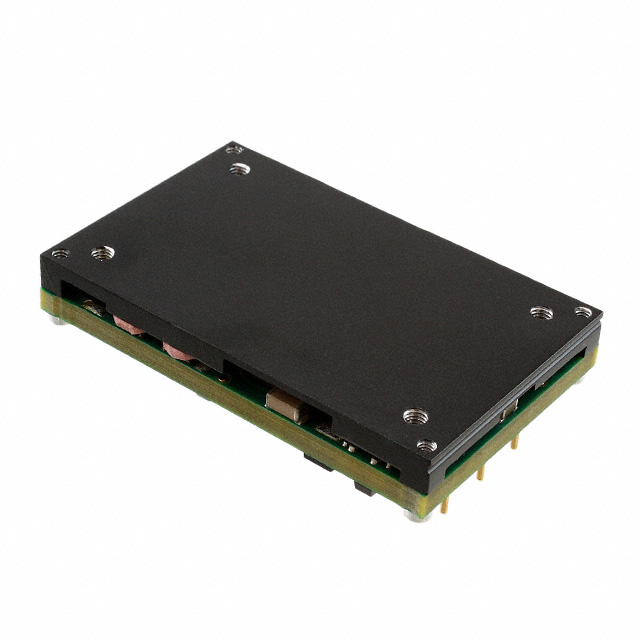

UWQ-12/17-Q48NB-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 204W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

UWQ-12/17-Q48NB-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 204W

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UWQ-12/17-Q48NB-C

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	17 A
Efficiency	92 %
Features	Remote On/Off, UVLO
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module, 1/4 Brick
Power (Watts)	204 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

UWQ-12 Series

Part	Power (Watts)	Current - Output (Max) [Max]	Type	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Features	Package / Case	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Control Features	Number of Outputs	Voltage - Isolation	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]
Murata Power Solutions Inc. UWQ-12/17-Q48NTB9-C	204 W	17 A	Isolated Module	92 %	58.4 mm	0.46 in	2.3 in	1.45 in	11.7 mm	36.8 mm	OVP Remote On/Off SCP UVLO	8-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active Low Enable	1	2250 VDC	80 V	Through Hole	18 V
Murata Power Solutions Inc. UWQ-12/20-T48NBS-C	240 W	20 A	Isolated Module	92 %	58.4 mm	0.5 in	2.3 in	1.45 in	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	1/4 Brick 5 Leads 8-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active Low Enable	1	2250 VDC	60 V	Through Hole	18 V
Murata Power Solutions Inc. UWQ-12/17-Q48NT-C	204 W	17 A	Isolated Module	92 %	58.4 mm	0.46 in	2.3 in	1.45 in	11.7 mm	36.8 mm	OVP Remote On/Off SCP UVLO	8-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active Low Enable	1	2250 VDC	80 V	Through Hole	18 V
Murata Power Solutions Inc. UWQ-12/17-Q48NB-C	204 W	17 A	Isolated Module	92 %	58.4 mm	0.5 in	2.3 in	1.45 in	12.7 mm	36.8 mm	Remote On/Off UVLO	1/4 Brick 5-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active Low Enable	1	2250 VDC	75 V	Through Hole	18 V
Murata Power Solutions Inc. UWQ-12/17-Q48PTB9-C	204 W	17 A	Isolated Module	92 %	58.4 mm	0.46 in	2.3 in	1.45 in	11.7 mm	36.8 mm	OVP Remote On/Off SCP UVLO	8-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active High Enable	1	2250 VDC	80 V	Through Hole	18 V
Murata Power Solutions Inc. UWQ-12/20-T48NB-C	240 W	20 A	Isolated Module	92 %	58.4 mm	0.5 in	2.3 in	1.45 in	12.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	1/4 Brick 5 Leads 8-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active Low Enable	1	2250 VDC	60 V	Through Hole	18 V
Murata Power Solutions Inc. UWQ-12/20-T48N-C	240 W	20 A	Isolated Module	92 %	58.4 mm	0.46 in	2.3 in	1.45 in	11.7 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	1/4 Brick 5 Leads 8-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active Low Enable	1	2250 VDC	60 V	Through Hole	18 V
Murata Power Solutions Inc. UWQ-12/20-T48NTB-C	240 W	20 A	Isolated Module	92 %	58.4 mm	0.48 in	2.3 in	1.45 in	12.2 mm	36.8 mm	OCP OTP OVP Remote On/Off SCP UVLO	1/4 Brick 5 Leads 8-DIP Module	12 V	85 °C	-40 °C	ITE (Commercial)	Active Low Enable	1	2250 VDC	60 V	Through Hole	18 V
