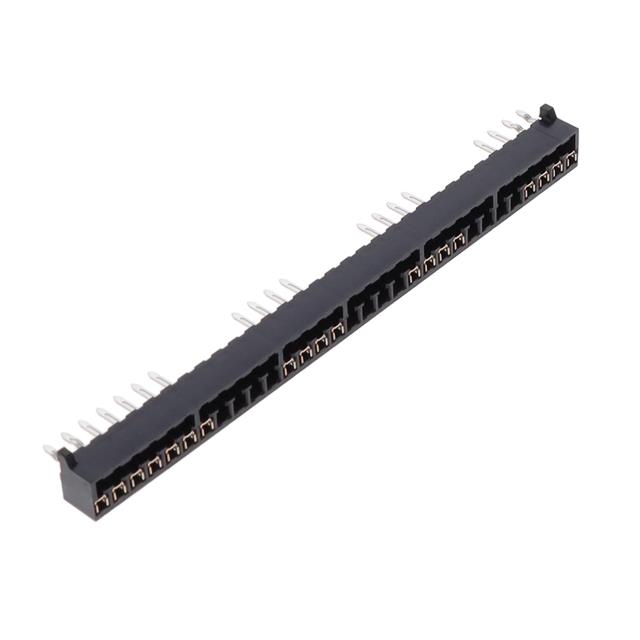

DF10-31S-2DSA(78)

Active

Hirose Electric USA, Inc.

CONN 31 PIN FEMALE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF10-31S-2DSA(78)

Active

Hirose Electric USA, Inc.

CONN 31 PIN FEMALE STRAIGHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF10-31S-2DSA(78)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	31
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

DF10 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Contact Shape	Number of Positions	Insulation Color	Insulation Height [custom]	Insulation Height [custom]	Termination	Connector Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Material Flammability Rating	Insulation Material	Contact Type	Mounting Type	Current Rating (Amps)	Style	Applications
Hirose Electric USA, Inc. DF10-26S-2DSA(62)	-30 ░C	85 °C	250 VAC	0.11 in	2.79 mm	Push-Pull	Square	26	Black	0.157 in	4 mm	Kinked Pin Solder	Receptacle	Tin	0.099 µm	3.9 µin	Gold	All	0.079 in	2 mm	1	1 çm	39.4 çin	Phosphor Bronze	UL94 V-0	Nylon Polyamide (PA)	Female Socket	Through Hole	2 A
Hirose Electric USA, Inc. DF10-31S-2DSA(72)	-30 ░C	85 °C	250 VDC	0.11 in	2.79 mm	Push-Pull	Square	31	Black	0.157 in	4 mm	Solder	Receptacle	Tin	1 µm	39.4 µin	Gold	All	0.079 in	2 mm	1	1 çm	39.4 çin	Phosphor Bronze	UL94 V-0	Nylon Polyamide (PA)	Female Socket	Through Hole	2 A	Board to Board Cable
Hirose Electric USA, Inc. DF10-31S-2DSA(78)	-30 ░C	85 °C	250 VDC	0.11 in	2.79 mm	Push-Pull	Square	31	Black	0.157 in	4 mm	Solder	Receptacle	Tin	1 µm	39.4 µin	Gold	All	0.079 in	2 mm	1	1 çm	39.4 çin	Phosphor Bronze	UL94 V-0	Nylon Polyamide (PA)	Female Socket	Through Hole	2 A	Board to Board Cable
Hirose Electric USA, Inc. DF10-26S-2DSA(72)	-55 °C	125 °C	250 VDC			Push-Pull	Square	26	Black	0.157 in	4 mm	Kinked Pin Solder	Receptacle	Tin	0.1 µm	3.94 µin	Gold	All	0.079 in	2 mm	1			Copper	UL94 V-0	Liquid Crystal Polymer (LCP)	Female Socket	Through Hole	2 A	Board to Board Cable	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.46
		10	$ 3.14
		120	$ 2.77
		600	$ 2.35
		1080	$ 2.01
		5040	$ 1.80

Description

General part information

DF10 Series

31 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
