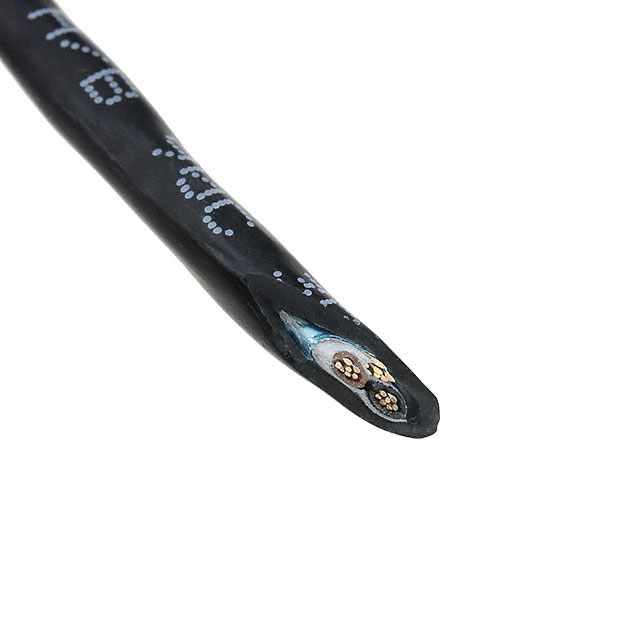

25192 BK199

Active

ALPHA WIRE

CABLE 2COND 22AWG BLK SHLD FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG BLK SHLD FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25192 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	22 AWG

Part	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Spool Size	Spool Size	Shield Material	Cable Type	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Features	Length	Jacket (Insulation) Material	Number of Conductors	Ratings	Conductor Insulation	Jacket Color	Conductor Material	Voltage	Length	Length
ALPHA WIRE 25192 BK199	Foil	-30 ░C	90 °C	1000 ft	304.8 m	Aluminum	Multi-Conductor	100 %	7	30 AWG	22 AWG	Biological Compatibility Drain Wire Rip Cord	Enter Number of Feet in Order Quantity	Polyurethane (PU)	2	ISO 10993 UL Style 20668	Poly-Vinyl Chloride (PVC)	Black	Copper Tinned	300 V
ALPHA WIRE 25192 SL199	Foil	-30 ░C	90 °C			Aluminum	Multi-Conductor	100 %	7	30 AWG	22 AWG	Biological Compatibility Drain Wire Rip Cord		Polyurethane (PU)	2	ISO 10993 UL Style 20668	Poly-Vinyl Chloride (PVC)	Slate	Copper Tinned	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 22 AWG Foil Enter Number of Feet in Order Quantity
