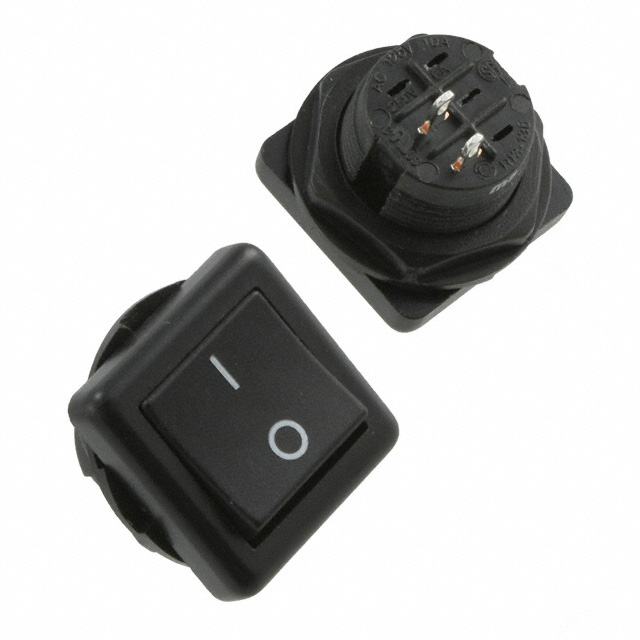

GRB136A05BB2

Active

CW Industries

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB136A05BB2

Actuator Marking	O -
Actuator Type	Concave (Curved)
Approval Agency	cULus, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions [diameter]	18.2 mm
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Color - Actuator/Cap	Approval Agency	Actuator Type	Circuit	Switch Function	Mechanical Life	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Marking	Current Rating (Amps)	Termination Style
CW Industries GRB136A05BB2	Black	CSA cULus	Concave (Curved)	SPST	On-Off	100000 Cycles	Panel Mount Threaded Body with Nut	125 V	18.2 mm	O -	10 A	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Threaded Body with Nut

Technical documentation and resources

No documents available
