Q-0L03P0008001M

Active

Amphenol Custom Cable

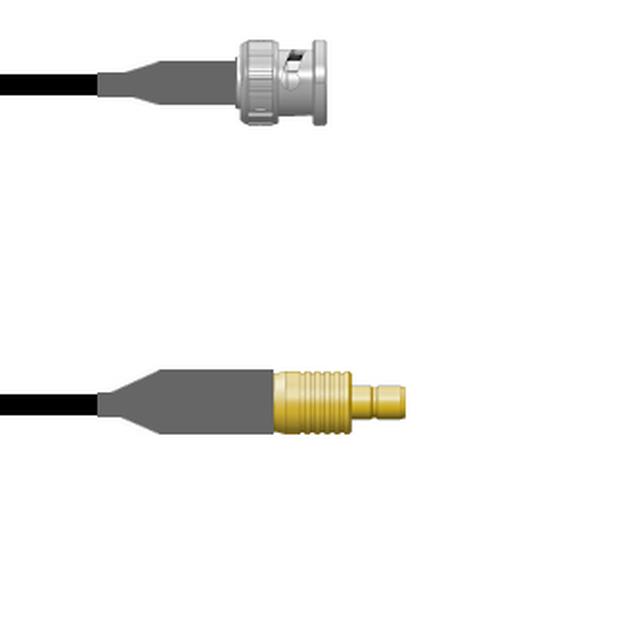

CBL ASSY BNC-SMB PLUG-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0L03P0008001M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0L03P0008001M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0L03P0 Series

Part	1st Contact Gender	Style	2nd Contact Gender	1st Connector	Features	Cable Type	Color	1st Connector Mounting Type	2nd Connector Mounting Type	Overall Impedance	2nd Connector	Length	Length	Length	Frequency - Max [Max]
Amphenol Custom Cable Q-0L03P0008108i	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	2.7 m	9 ft	108 in	4 GHz
Amphenol Custom Cable Q-0L03P0008003M	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	3 m	9.8 '	118.1 in	4 GHz
Amphenol Custom Cable Q-0L03P0008009i	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	228.6 mm		9 "	4 GHz
Amphenol Custom Cable Q-0L03P00082.5M	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	2.5 m	8.2 '	98.4 in	4 GHz
Amphenol Custom Cable Q-0L03P0008001M	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	1 m	3.3 ft	39.4 in	4 GHz
Amphenol Custom Cable Q-0L03P0008.75M	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	750 mm		29.53 "	4 GHz
Amphenol Custom Cable Q-0L03P0008048i	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	1200 mm	4 ft	48 in	4 GHz
Amphenol Custom Cable Q-0L03P00080.5M	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	50 cm		19.69 "	4 GHz
Amphenol Custom Cable Q-0L03P0008036i	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	91.44 cm		36 in	4 GHz
Amphenol Custom Cable Q-0L03P0008006i	Male	BNC to SMB	Female	BNC Plug	Shielded	RG-58	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	SMB Jack	152.4 mm		6 in	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 141.09
		25	$ 138.36
		50	$ 135.63
		100	$ 132.89
		250	$ 130.16

Description

General part information

Q-0L03P0 Series

Cable Assembly Coaxial BNC to SMB RG-58 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
