TT700N22KOFTIMHPSA1

Active

Infineon Technologies

THE TT700N22KOF TIM IS A 60 MM PRIME BLOCK THYRISTOR/THYRISTOR MODULE WITH 2200 V IN PRESSURE CONTACT TECHNOLOGY AND PREAPPLIED THERMAL INTERFACE MATERIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TT700N22KOFTIMHPSA1

Active

Infineon Technologies

THE TT700N22KOF TIM IS A 60 MM PRIME BLOCK THYRISTOR/THYRISTOR MODULE WITH 2200 V IN PRESSURE CONTACT TECHNOLOGY AND PREAPPLIED THERMAL INTERFACE MATERIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TT700N22KOFTIMHPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20400 A
Current - On State (It (AV)) (Max) [Max]	700 A
Current - On State (It (RMS)) (Max)	1050 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature	135 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.2 V
Voltage - Off State	2.2 kV

TT700N Series

Part	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Structure	Mounting Type	Current - On State (It (RMS)) (Max)	Current - Hold (Ih) (Max) [Max]	Operating Temperature
Infineon Technologies TT700N22KOFTIMHPSA1	700 A	20400 A	2 SCRs	250 mA	Module	2.2 V	2.2 kV	Series Connection - All SCRs	Chassis Mount	1050 A	300 mA	135 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 364.34
LCSC	Piece	1	$ 964.17
		200	$ 373.12
		500	$ 360.01
		1000	$ 353.53

Description

General part information

TT700N Series

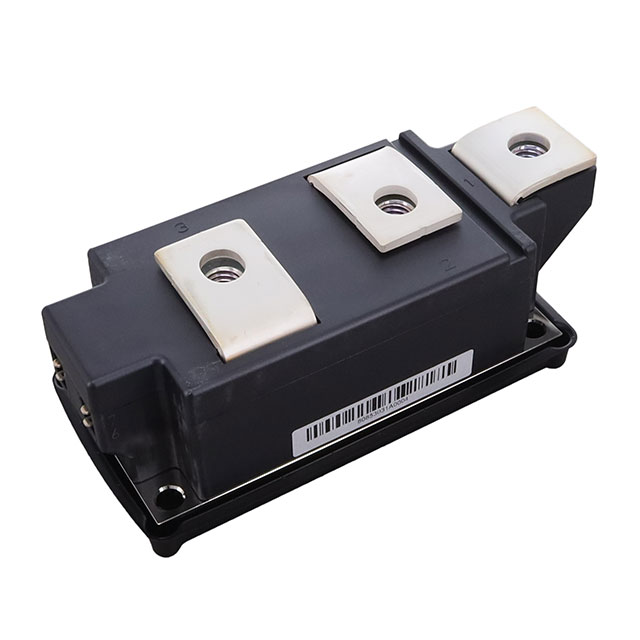

Thyristor/Thyristor 60 mmPrime Block2200 V, 700 A module for phase control inpressure contact technologywith pre-appliedThermal Interface Material. TT700N22KOF offers highest current density and highest surge current in standard 60 mm housing.
