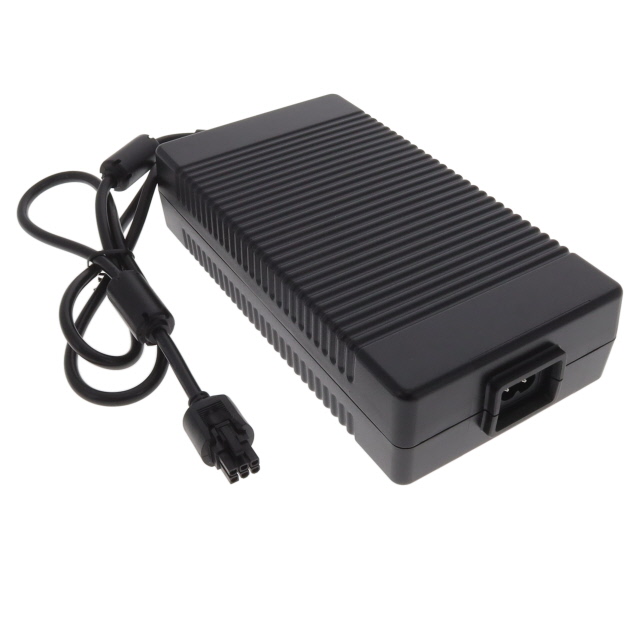

ME240A1251Q01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 199W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 199W

Technical Specifications

Parameters and characteristics for this part

Specification	ME240A1251Q01

Applications	Medical
Approval Agency	CE
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	16.6 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Rectangular, 6 Position
Power (Watts)	199 W
Region Utilized	International
Size / Dimension [x]	8.4 "
Size / Dimension [x]	213.4 mm
Size / Dimension [y]	4.25 in
Size / Dimension [y]	108 mm
Size / Dimension [z]	47 mm
Size / Dimension [z]	1.85 in
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Applications	Approval Agency	Voltage - Output	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Input Connector	Form	Output Connector	Region Utilized	No Load Power Consumption [Max]	Efficiency	Weight	Weight	Size / Dimension	Size / Dimension
SL POWER / Advanced Energy ME240A1251Q01	Medical	CE	12 V	199 W	50 °C	-20 C	Cord	8.4 "	47 mm	4.25 in	1.85 in	108 mm	213.4 mm	16.6 A	1 m	39.4 "	90 VAC	264 VAC	60601-1	IEC 320-C8	Desktop (Class II)	Rectangular 6 Position	International	150 mW	CoC Tier 2 Level VI
SL POWER / Advanced Energy ME240A1251F01
SL POWER / Advanced Energy ME240A1251N01	Medical	CE	12 V	199 W	50 °C	-20 C	Cord							16.6 A	1 m	39.4 "	100 VAC	240 VAC		IEC 320-C8	Desktop (Class II)	Rectangular 6 Position	International	150 mW	CoC Tier 2 Level VI	700 g	1.543 lb	1.85 in 4.25 in 8.43 in	47 mm 108 mm 214 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	24	$ 170.02

General part information

12V 199 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
