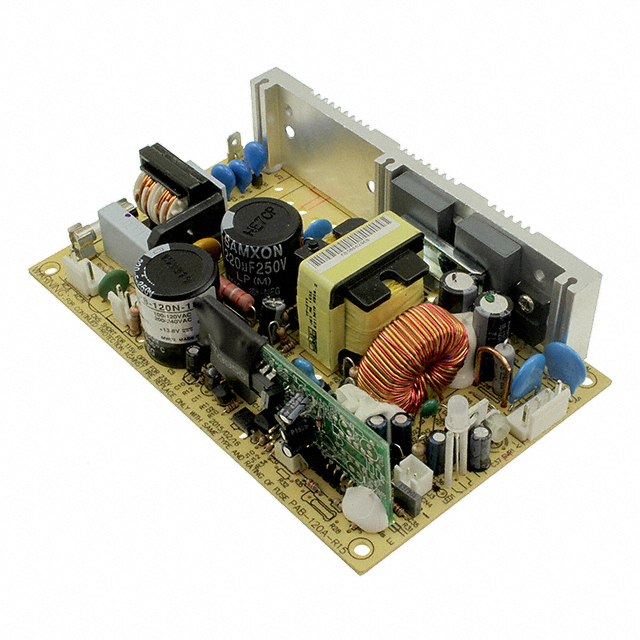

PB-120N-54P

Obsolete

MEAN WELL USA Inc.

BATT CHRGR OPEN FRAME 55.2V 2.2A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PB-120N-54P

Obsolete

MEAN WELL USA Inc.

BATT CHRGR OPEN FRAME 55.2V 2.2A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PB-120N-54P

Approval Agency	cULus, CB, GS, CE
Battery Cell Size	54 V
Battery Chemistry	Lead Acid
Charge Current - Max [Max]	2.2 A
Features	LED Indicator
Mounting Type	Chassis Mount
Number of Cells	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-10 °C
Power - Max [Max]	121.44 W
Size / Dimension [x]	5.67 in
Size / Dimension [x]	144 mm
Size / Dimension [y]	90 mm
Size / Dimension [y]	3.54 in
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Termination Style	Rectangular Connector
Type	Open Frame
Voltage - Input [Max]	132 VAC, 264 VAC
Voltage - Input [Min]	88 VAC, 176 VAC
Voltage - Nominal	55.2 V
Weight	1100 g

PB-120 Series

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Battery Cell Size	Battery Chemistry	Power - Max [Max]	Termination Style	Features	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Charge Current - Max [Max]	Weight	Voltage - Nominal	Number of Cells	Approval Agency	Size / Dimension [z]	Size / Dimension [y]
MEAN WELL USA Inc. PB-120N-27P	Open Frame	88 VAC 176 VAC	132 VAC 264 VAC	-10 °C	45 °C	24 V	Lead Acid	118.68 W	Rectangular Connector	LED Indicator	Chassis Mount	90 mm	5.67 in	144 mm	33 mm	1.3 "	3.54 in	4.3 A	1100 g	27.6 V	1	CB CE cULus GS
MEAN WELL USA Inc. PB-120N-54C	Enclosed	88 VAC 176 VAC	132 VAC 264 VAC	-10 °C	45 °C	54 V	Lead Acid	121.44 W	DIN 3 Pin	LED Indicator	Desktop		7.09 in	180 mm		1.93 in	3.78 in	2.2 A	1100 g	55.2 V	1	CB CE cULus GS	49 mm	96 mm
MEAN WELL USA Inc. PB-120N-54P	Open Frame	88 VAC 176 VAC	132 VAC 264 VAC	-10 °C	45 °C	54 V	Lead Acid	121.44 W	Rectangular Connector	LED Indicator	Chassis Mount	90 mm	5.67 in	144 mm	33 mm	1.3 "	3.54 in	2.2 A	1100 g	55.2 V	1	CB CE cULus GS
MEAN WELL USA Inc. PB-120P-27C	Enclosed	88 VAC 176 VAC	132 VAC 264 VAC	-10 °C	45 °C	24 V	Lead Acid	118.68 W	DIN 3 Pin	LED Indicator	Desktop		7.09 in	180 mm		1.93 in	3.78 in	4.3 A	1240 g	27.6 V	1	CB CE cULus GS	49 mm	96 mm
MEAN WELL USA Inc. PB-120P-13C	Enclosed	88 VAC 176 VAC	132 VAC 264 VAC	-10 °C	45 °C	12 V	Lead Acid	99.36 W	DIN 3 Pin	LED Indicator	Desktop		7.09 in	180 mm		1.93 in	3.78 in	7.2 A	1240 g	13.8 V	1	CB CE cULus GS	49 mm	96 mm
MEAN WELL USA Inc. PB-120N-27C	Enclosed	88 VAC 176 VAC	132 VAC 264 VAC	-10 °C	45 °C	24 V	Lead Acid	118.68 W	XLR 3 Pin	LED Indicator	Desktop		7.09 in	180 mm		1.93 in	3.78 in	4.3 A	1100 g	27.6 V	1	CB CE cULus GS	49 mm	96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.04

Description

General part information

PB-120 Series

Open Frame Battery Charger 55.2V 2.2A 54V
