9453-1583-010

Active

Radiall USA, Inc.

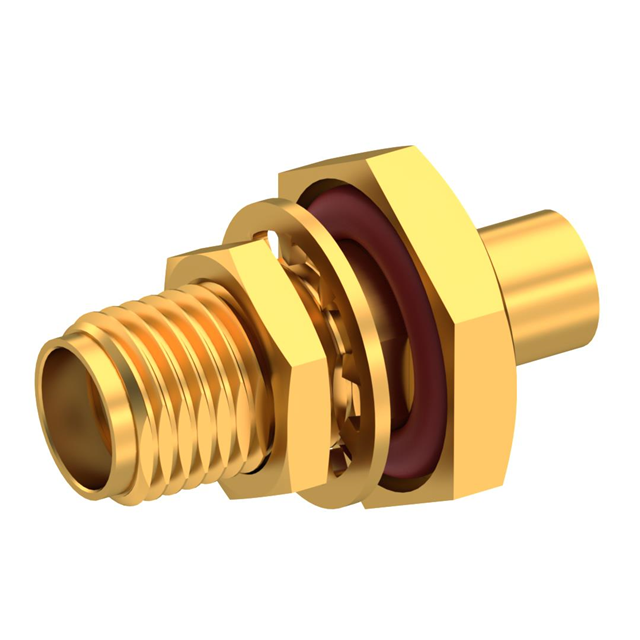

SMA F STR BHD SD .085

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR BHD SD .085

Technical Specifications

Parameters and characteristics for this part

Specification	9453-1583-010

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	350 V

Part	Impedance	Center Contact Material	Voltage Rating	Body Material	Center Contact Plating	Body Finish	Connector Style	Housing Color	Mounting Feature	Contact Termination	Mating Cycles	Dielectric Material	Shield Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Frequency - Max [Max]	Includes	Cable Group
Radiall USA, Inc. 9453-1583-009	50 Ohms	Beryllium Copper	500 V	Stainless Steel	Gold	Gold	SMA	Gold	Bulkhead - Front Side Nut	Solder	500	Polytetrafluoroethylene (PTFE)	Solder	1	-65 ░C	165 °C	Female Socket Jack	18 GHz
Radiall USA, Inc. 9453-1583-010	50 Ohms	Beryllium Copper	350 V	Stainless Steel	Gold	Gold	SMA	Gold	Bulkhead - Front Side Nut	Solder	500	Polytetrafluoroethylene (PTFE)	Solder	1	-65 ░C	105 ░C	Female Socket Jack	18 GHz	1 Connector 1 Lockwasher 1 Nut	RG-405 (.085" Semi Rigid)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
