DF3-6EP-2C

Active

Hirose Electric USA, Inc.

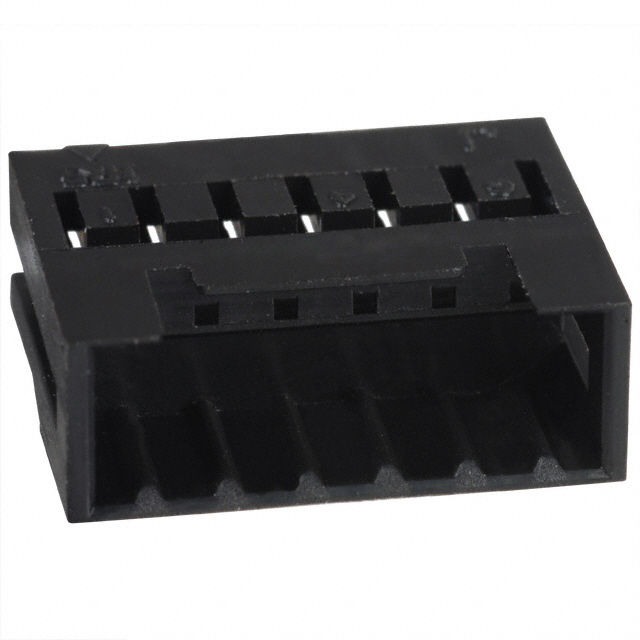

BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), MALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING MECH, BLACK INSULATOR, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF3-6EP-2C Spec Datasheet

DF3-6EP-2C

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), MALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING MECH, BLACK INSULATOR, PLUG

Deep-Dive with AI

DocumentsDF3-6EP-2C Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-6EP-2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

DF3-6 Series

Part	Termination	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions Loaded	Connector Type	Contact Type	Contact Finish - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Style	Insulation Material	Contact Material	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Mounting Type	Fastening Type	Current Rating (Amps)	Contact Shape	Number of Rows	Wire Gauge	Contact Finish	Features	Cable Termination	Color	Wire Type	Pitch [x]	Pitch [x]	Note	Contact Termination	Voltage Rating	Mated Stacking Heights [z]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. DF3-6P-2DSA(01)	Press-Fit Solder	0.299 in	7.6 mm	All	Header	Male Pin	Gold	0.197 in	5 mm	UL94 V-0	0.079 in	2 mm	105 ░C	-55 °C	0.114 in	2.9 mm	0.203 Ám	8 Áin	Black	Board to Board Cable	Nylon Polyamide (PA)	Brass	6	0.122 in	3.1 mm	Shrouded - 4 Wall	Through Hole	Push-Pull	3 A	Square	1
Hirose Electric USA, Inc. DF3-6S-2R28					Receptacle	Female Socket																	6				Free Hanging (In-Line)				1	28 AWG	Tin	Closed End	IDC	Black	Discrete	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-6S-2C					Receptacle	Female Socket							105 ░C	-55 °C							Nylon Polyamide (PA)		6				Free Hanging (In-Line)				1					Black		0.079 in	2 mm	Contacts Not Included	Crimp
Hirose Electric USA, Inc. DF3-6S-2R26(05)					Receptacle	Female Socket																	6				Free Hanging (In-Line)				1	26 AWG	Tin	Closed End	IDC	Black	Discrete	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-6EP-2C					Plug	Male Pin							105 ░C	-55 °C							Nylon Polyamide (PA)		6				Free Hanging (In-Line)				1					Black		0.079 in	2 mm	Contacts Not Included	Crimp
Hirose Electric USA, Inc. DF3-6S-2R28(05)					Receptacle	Female Socket																	6				Free Hanging (In-Line)				1	28 AWG	Tin	Closed End	IDC	Black	Discrete	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-6S-2C(16)
Hirose Electric USA, Inc. DF3-6S-2DSA(50)	Solder			All	Receptacle	Female Socket	Gold	0.232 in	5.9 mm	UL94 V-0	0.079 in	2 mm	85 °C	-30 ░C	0.118 in	3 mm			Black	Board to Board Cable	Nylon Polyamide (PA)	Phosphor Bronze	6				Through Hole	Friction Lock	3 A	Square	1											30 VAC	6.6 mm 7.5 mm	Tin
Hirose Electric USA, Inc. DF3-6S-2DSA(55)	Solder			All	Receptacle	Female Socket	Gold	0.232 in	5.9 mm	UL94 V-0	0.079 in	2 mm	85 °C	-30 ░C	0.118 in	3 mm	0.203 Ám	8 Áin	Black	Board to Board Cable	Nylon Polyamide (PA)	Phosphor Bronze	6				Through Hole	Friction Lock	3 A	Square	1											30 VAC	6.6 mm 7.5 mm	Tin	1 çm	39.4 çin
Hirose Electric USA, Inc. DF3-6P-2DS	Press-Fit Solder			All	Header	Male Pin		0.197 in	5 mm	UL94 V-0	0.079 in	2 mm	105 ░C	-55 °C	0.114 in	2.9 mm			Black	Board to Board Cable	Nylon Polyamide (PA)	Brass	6	0.122 in	3.1 mm	Shrouded - 4 Wall	Through Hole Right Angle	Push-Pull	3 A	Square	1													Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.31
		25	$ 0.28
		50	$ 0.26
		100	$ 0.24
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.18
		2500	$ 0.17

Description

General part information

DF3-6 Series

6 Rectangular Connectors - Housings Plug Black 0.079" (2.00mm)

Documents

Technical documentation and resources

DF3-6EP-2C Spec

Datasheet
