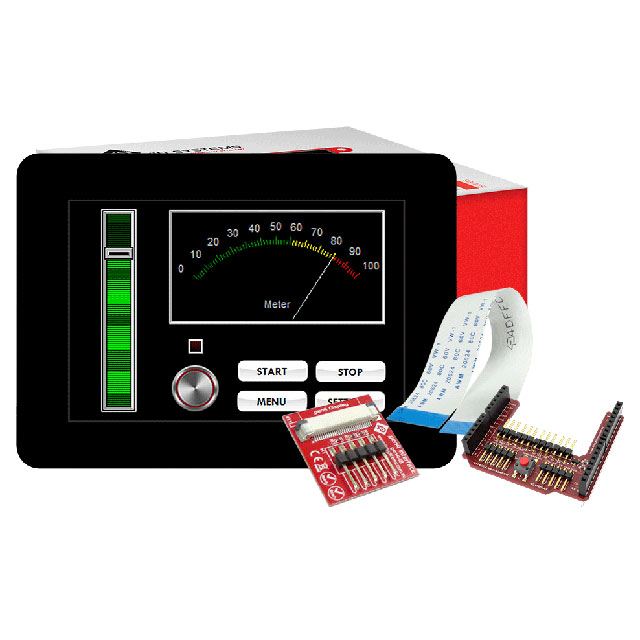

GEN4-ULCD-35D-CLB-AR

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 3.5"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

GEN4-ULCD-35D-CLB-AR

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 3.5"

Deep-Dive with AI

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GEN4-ULCD-35D-CLB-AR

Backlight	LED - White
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch [x]	0.15 mm
Dot Pitch [y]	0.15 mm
Dot Pixels [x]	480
Dot Pixels [y]	320
Graphics Color	Green, Red, Blue
Interface	Parallel/Serial
Viewing Area [y]	49 mm
Viewing Area [z]	73.4 mm

GEN4-ULCD Series

Part	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [custom]	Viewing Area [custom]	Touchscreen	Interface	Backlight	Display Type	Dot Pitch [x]	Dot Pitch [y]	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Dot Pixels	Viewing Area [x]	Viewing Area [y]	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Viewing Area [z]
4D Systems Pty Ltd GEN4-ULCD-28DT-AR	Blue Green Red	2.8 in	71.12 mm	43.2 mm	57.6 mm	Resistive	I2C SPI TTL	LED - White	TFT - Color	0.18 mm	0.18 mm	Transmissive	320	240 pixels
4D Systems Pty Ltd GEN4-ULCD-28D	Blue Green Red	2.8 in	71.12 mm	43.2 mm	57.6 mm		I2C SPI TTL	LED - White	TFT - Color	0.18 mm	0.18 mm	Transmissive	320	240 pixels
4D Systems Pty Ltd GEN4-ULCD-70DT-AR	Blue Green Red	7 in	177.8 mm			Resistive	I2C SPI TTL	LED - White	TFT - Color	0.19 mm	0.18 mm	Transmissive	480	800	WVGA	154 mm	85.92 mm
4D Systems Pty Ltd GEN4-ULCD-43DCT-CLB	Blue Green Red	4.3 in	109.22 mm			Capacitive	I2C SPI TTL	LED - White	TFT - Color	0.2 mm	0.2 mm	Transmissive	272	480		95.04 mm	53.86 mm
4D Systems Pty Ltd GEN4-ULCD-70DT-SB-AR	Blue Green Red	7 in	177.8 mm			Resistive	Parallel/Serial	LED - White	TFT - Color	0.19 mm	0.18 mm	Transmissive	480	800	WVGA	154 mm	85.92 mm
4D Systems Pty Ltd GEN4-ULCD-50D-PI	Blue Green Red						I2C SPI TTL	LED - White	TFT - Color			Transmissive	480	800	WVGA	108 mm	64.8 mm	127 mm	5 in
4D Systems Pty Ltd GEN4-ULCD-32DT-PI	Blue Green Red	3.2 in	81.28 mm			Resistive	I2C SPI TTL	LED - White	TFT - Color	0.2 mm	0.2 mm	Transmissive	320	240 pixels			48.6 mm			64.8 mm
4D Systems Pty Ltd GEN4-ULCD-35D-CLB-AR	Blue Green Red						Parallel/Serial	LED - White	TFT - Color	0.15 mm	0.15 mm	Transmissive	320	480			49 mm			73.4 mm
4D Systems Pty Ltd GEN4-ULCD-70DCT-CLB-AR	Blue Green Red	7 in	177.8 mm			Capacitive	Parallel/Serial	LED - White	TFT - Color	0.19 mm	0.18 mm	Transmissive	480	800	WVGA	154 mm	85.92 mm
4D Systems Pty Ltd GEN4-ULCD-70D-AR	Blue Green Red	7 in	177.8 mm				I2C SPI TTL	LED - White	TFT - Color	0.19 mm	0.18 mm	Transmissive	480	800	WVGA	154 mm	85.92 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 84.95
		10	$ 71.10

Description

General part information

GEN4-ULCD Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 3.5" (88.90mm) 480 x 320 (HVGA)
