09360162601

Active

HARTING Technology Group

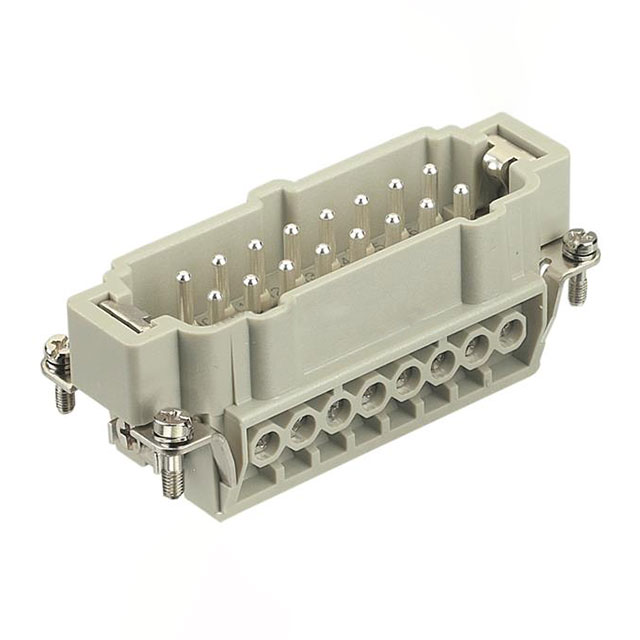

HAN 16E EX MALE SCREW TERMINAL INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 16E EX MALE SCREW TERMINAL INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	09360162601

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	16 B
Termination Style	Screw
Voltage Rating	90 V

Part	Voltage Rating	Size	Housing Material	Current Rating (Amps)	Number of Positions	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Gender	Termination Style	Material Flammability Rating	Contact Material	Contact Finish
HARTING Technology Group 09360162702	90 V	16 B	Polycarbonate (PC)	16 A	16+Ground	Insert without Contacts	Gray	-20 C	40 °C	Han® E	Female	Crimp	UL94 V-0
HARTING Technology Group 09360162601	90 V	16 B	Polycarbonate (PC)	16 A	16+Ground		Gray	-20 C	40 °C		Male	Screw	UL94 V-0	Copper Alloy	Silver
HARTING Technology Group 09360162602	90 V	16 B	Polycarbonate (PC)	16 A	16+Ground	Insert without Contacts	Gray	-20 C	40 °C	Han® E	Male	Crimp	UL94 V-0
HARTING Technology Group 09360162701	90 V	16 B	Polycarbonate (PC)	16 A	16+Ground		Gray	-20 C	40 °C		Female	Screw	UL94 V-0	Copper Alloy	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 16+Ground Position Screw

Technical documentation and resources

No documents available
