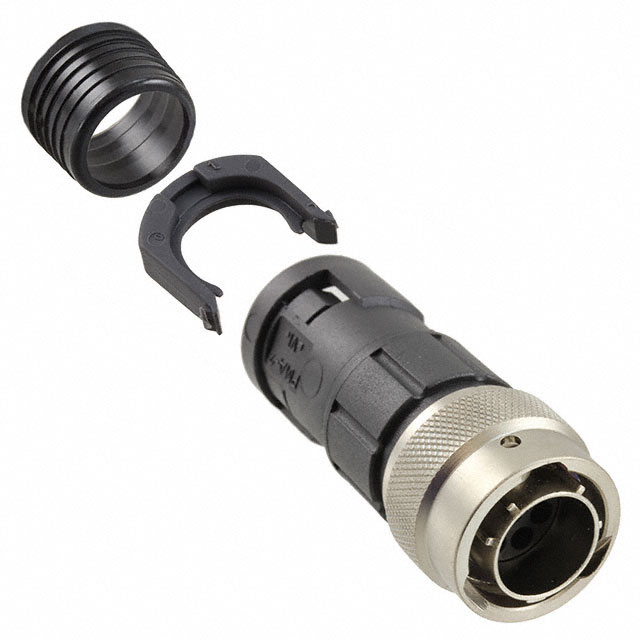

UT06FC128PH

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUT0 Series Catalog

UT06FC128PH

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

DocumentsUT0 Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT06FC128PH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP69K, IP68, IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy, Halogen Free
Shell Size - Insert	12-8
Shielding	Shielded
Type	For Male Pins

UT06F Series

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Type	Contact Type	Housing Color	Shielding	Mounting Type	Material Flammability Rating	Contact Size	Insert Material	Fastening Type	Contact Shape	Features	Shell Material	Shell Finish	Orientation	Note	Shell Size - Insert	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Souriau-Sunbank by Eaton UT06FC1619SH	16	19	19	-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Female Sockets	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included
Souriau-Sunbank by Eaton UT06FC2448SH	24	48	48	-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Female Sockets	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included
Souriau-Sunbank by Eaton UT06FC128PH			8	-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Male Pins	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included	12-8
Souriau-Sunbank by Eaton UT06FC124PH			4	-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Male Pins	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included	12-4
Souriau-Sunbank by Eaton UT06FC2028SH	20	28	28	-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Female Sockets	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included
Souriau-Sunbank by Eaton UT06FC1412SH			12	-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Female Sockets	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included	14-12
Souriau-Sunbank by Eaton UT06FC147SH	7	14		-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Female Sockets	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	16	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included		1	6
Souriau-Sunbank by Eaton UT06FC142G1SH				-40 °C	105 ░C	Plug Housing	IP67 IP68 IP69K	For Female Sockets	Crimp	Silver	Shielded	Free Hanging (In-Line)	UL94 V-0	8	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Circular	Backshell Coupling Nut	Zinc Alloy Halogen Free	Nickel	N	Contacts Not Included	14-2			2	3	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 37.87

Description

General part information

UT06F Series

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut

Documents

Technical documentation and resources

UT0 Series Catalog

Datasheet
