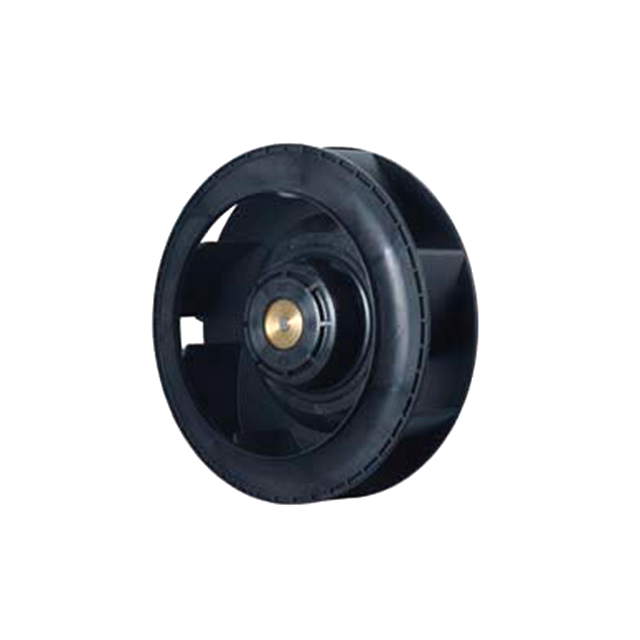

9W2TP48P0S001 - San Ace 221W Series

9W2TP48P0S001

Active
Sanyo Denki America Inc.

FAN IMP MTRZD 221X71MM 48VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan MotorsNumbering System Splash Proof Centrifugal Fan
9W2TP48P0S001 - San Ace 221W Series

9W2TP48P0S001

Active
Sanyo Denki America Inc.

FAN IMP MTRZD 221X71MM 48VDC

Deep-Dive with AI

DocumentsHandling Instructions for Fan MotorsNumbering System Splash Proof Centrifugal Fan

Technical Specifications

Parameters and characteristics for this part

Specification9W2TP48P0S001
Air Flow693 CFM
Air Flow19.4 m³/min
Approval AgencycURus, TUV
Bearing TypeBall
Current Rating (Amps)2.3 A
Fan TypeMotorized Impellers
FeaturesSpeed Sensor (Tach), PWM Control
Ingress ProtectionIP56 - Dust Protected, Water Resistant
Lifetime @ Temp.40000 Hrs
Material - BladePlastic
Material - FrameAluminum
Noise73.5 dB(A)
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Operating Temperature [Min]-25 °C
Power (Watts)110.4 W
RPM3400 RPM
Size / DimensionRound
Size / Dimension [diameter]221 mm
Static Pressure2.65 in H2O
Static Pressure660 Pa
Termination4 Wire Leads
Voltage - Rated [custom]48 VDC
Voltage Range [Max]72 VDC
Voltage Range [Min]36 VDC
Weight2.6 lbs
Weight1.2 kg
Width [x]71 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 512.46
10$ 456.82

Description

General part information

9W2TP48 Series

Fan Motorized Impellers 48VDC Round - 221mm Dia Ball 693.0 CFM (19.40m³/min) 4 Wire Leads
