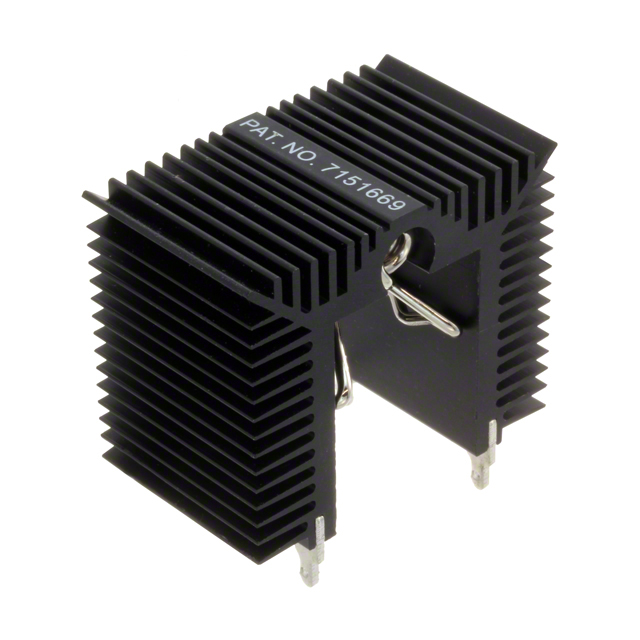

MTN-264-27
ActiveWakefield-Vette
HEATSINK TO-247/TO-264 W/CLIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTN-264-27
ActiveWakefield-Vette
HEATSINK TO-247/TO-264 W/CLIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTN-264-27 |
|---|---|
| Attachment Method | Clip |
| Fin Height | 1.555 in |
| Fin Height | 39.5 mm |
| Length | 26.92 mm |
| Length | 1.06 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-264, TO-247 |
| Shape | Rectangular, Fins |
| Type | Top Mount |
| Width [y] | 1.74 in |
| Width [y] | 44.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.16 | |
| 10 | $ 6.35 | |||
| 25 | $ 6.06 | |||
| 50 | $ 5.84 | |||
| 100 | $ 5.64 | |||
| 250 | $ 5.45 | |||
Description
General part information
MTN-264 Series
Heat Sink TO-247, TO-264 Aluminum Top Mount
