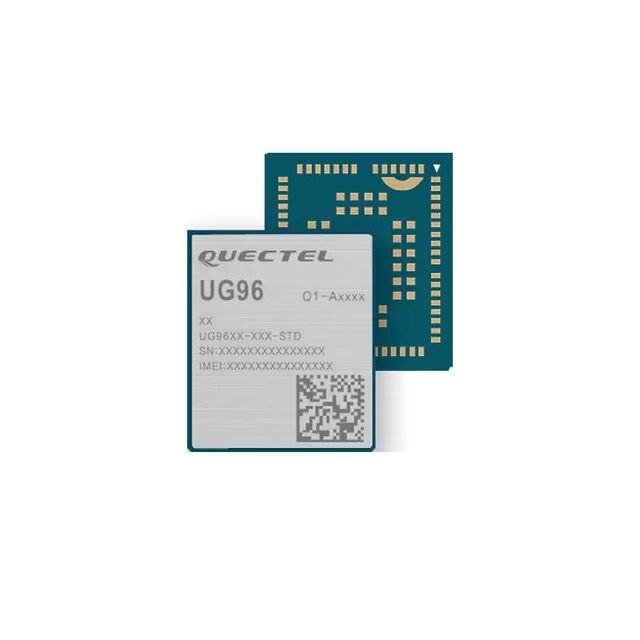

UG96LA-128-ING

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

Specification	UG96LA-128-ING

Antenna Type	Antenna Not Included
Data Rate	7.2 Mbps
Frequency	800 MHz, 850 MHz, 900 MHz, 2100 MHz, 1900 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	33 dBm
Protocol	GSM, HSPA, GPRS, UMTS, HSUPA, EDGE, HSDPA
RF Family/Standard	Cellular
Sensitivity	-110 dBm
Serial Interfaces	USB, I2C, PCM, UART
Voltage - Supply [Max]	4.3 V
Voltage - Supply [Min]	3.3 V

Part	Antenna Type	Sensitivity	Power - Output	Package / Case	Data Rate	Serial Interfaces	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	RF Family/Standard	Frequency	Operating Temperature [Max]	Operating Temperature [Min]
Quectel UG96LA-128-STD	Antenna Not Included	-110 dBm	33 dBm	Module	7.2 Mbps	I2C PCM UART USB	Surface Mount	4.3 V	3.3 V	EDGE GPRS GSM HSPA+ UMTS	Cellular	800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	85 °C	-40 °C
Quectel UG96LA-128-ING	Antenna Not Included	-110 dBm	33 dBm	Module	7.2 Mbps	I2C PCM UART USB	Surface Mount	4.3 V	3.3 V	EDGE GPRS GSM HSDPA HSPA HSUPA UMTS	Cellular	800 MHz 850 MHz 900 MHz 1900 MHz 2100 MHz	85 °C	-40 °C
Quectel UG96LATEA-128-STD	Antenna Not Included	-110 dBm	33 dBm	Module	7.2 Mbps	I2C PCM UART USB	Surface Mount	4.3 V	3.3 V	EDGE GPRS GSM HSPA+ UMTS	Cellular	800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular EDGE, GPRS, GSM, HSDPA, HSPA, HSUPA, UMTS Transceiver Module 800MHz, 850MHz, 900MHz, 1.9GHz, 2.1GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
